A collection of laser engraved, 4 inch slate tile microchip coasters.

Table of Contents

Details

Buy on Etsy

More info on Twitter: https://twitter.com/jasoncoon_/status/1358068819303014402

Full credit for the idea on Twitter: https://twitter.com/arturo182/status/1356764474116554759

Some source vector and image files: https://github.com/jasoncoon/macrochips

I have a Flux3D Beamo 30W CO2 laser. I use the metal engraving preset (50% power, 80mm/s speed).

A light coat of mineral oil before engraving makes them shiny, if that’s the look you want.

Collection

I have made 91 different macrochip designs so far:

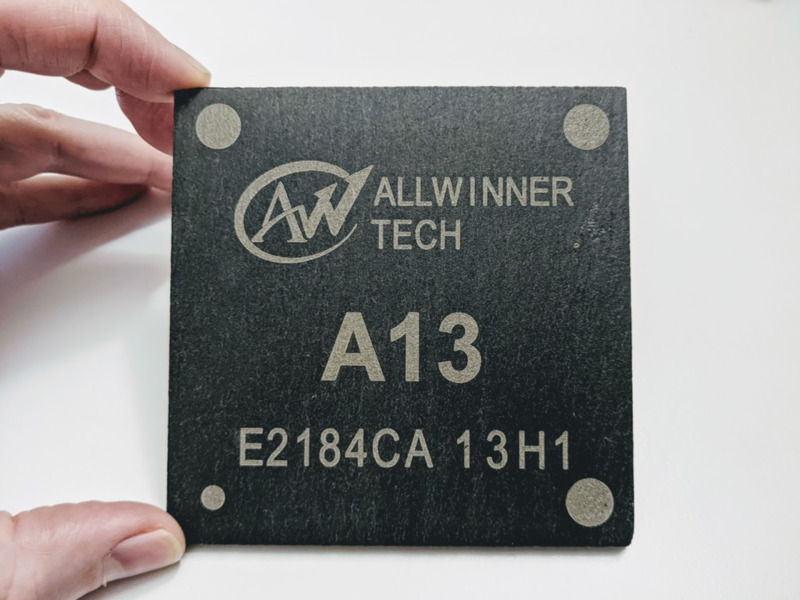

  • Allwinner A13

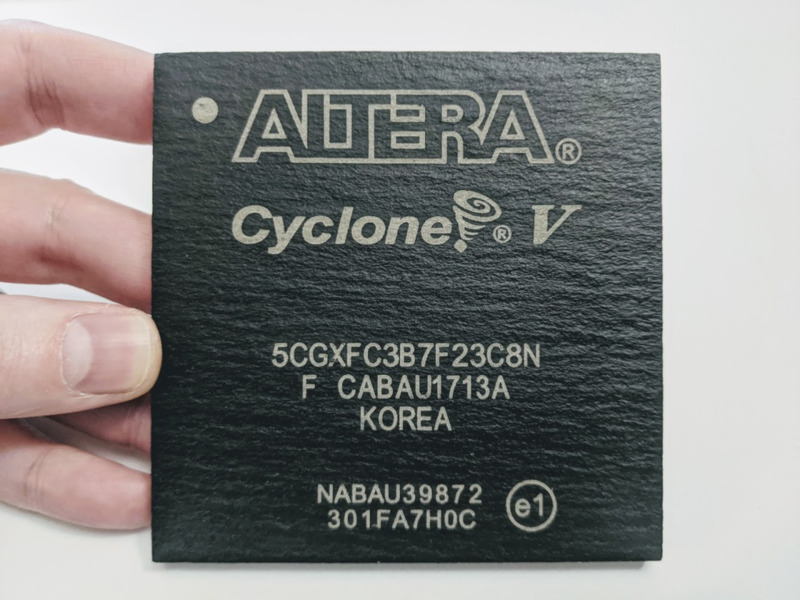

  • Altera Cyclone V FPGA

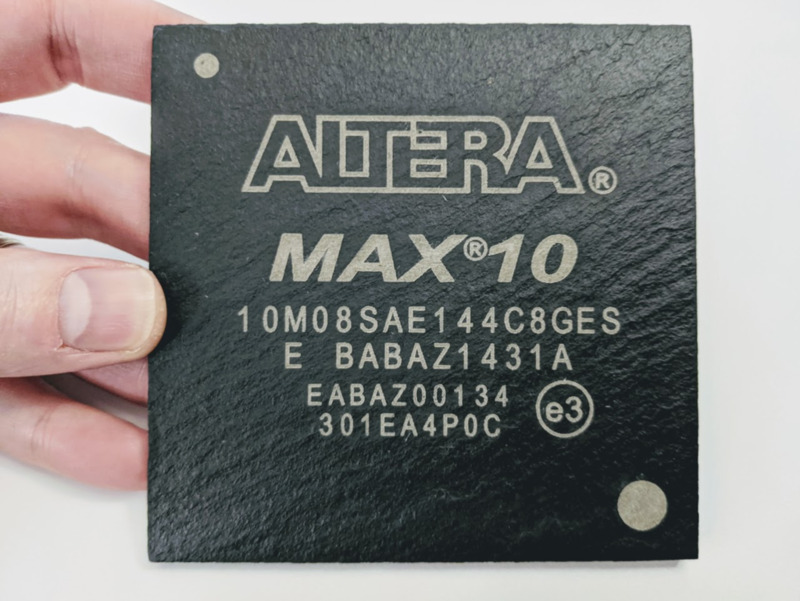

  • Altera Max 10

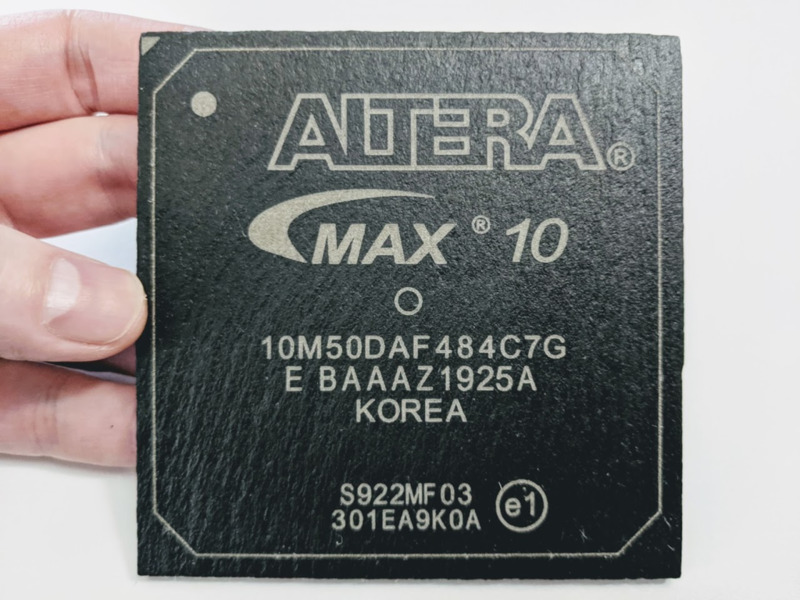

  • Altera Max 10 - 10M50DAF484C7G

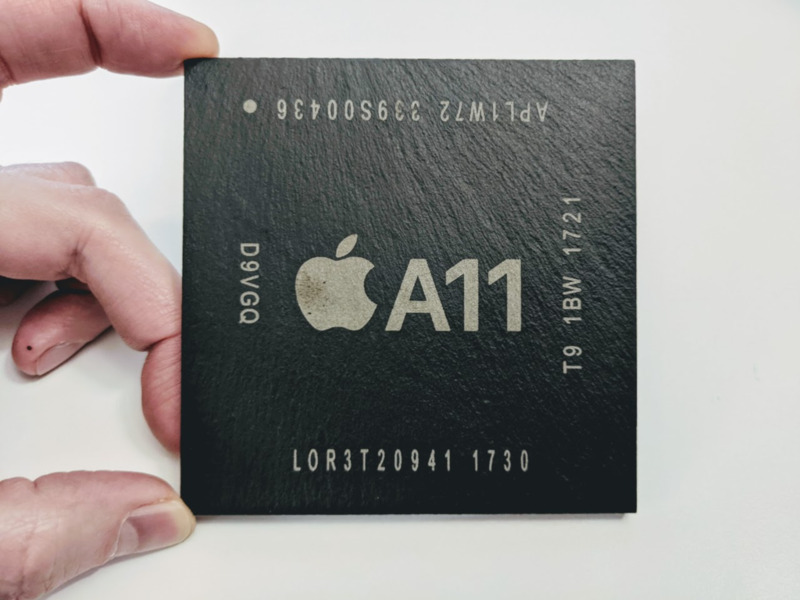

  • Apple A11

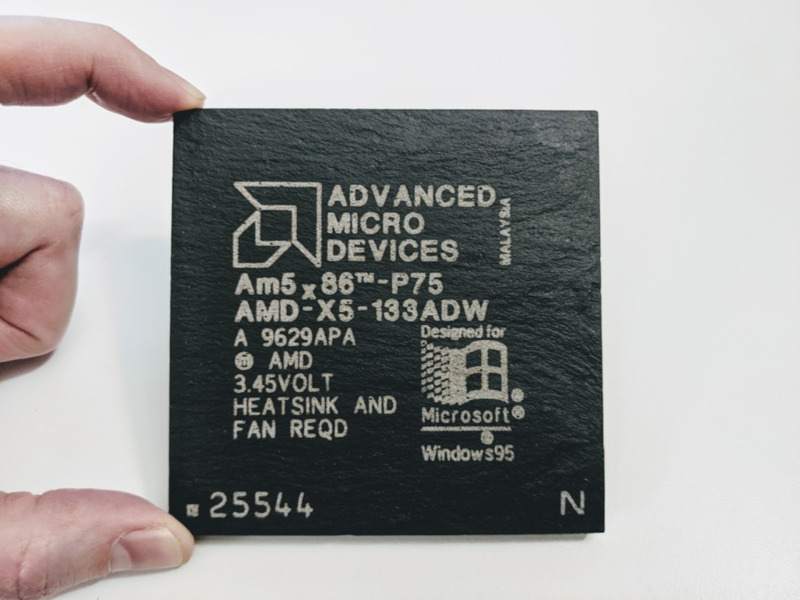

  • AMD Am5x86-P75

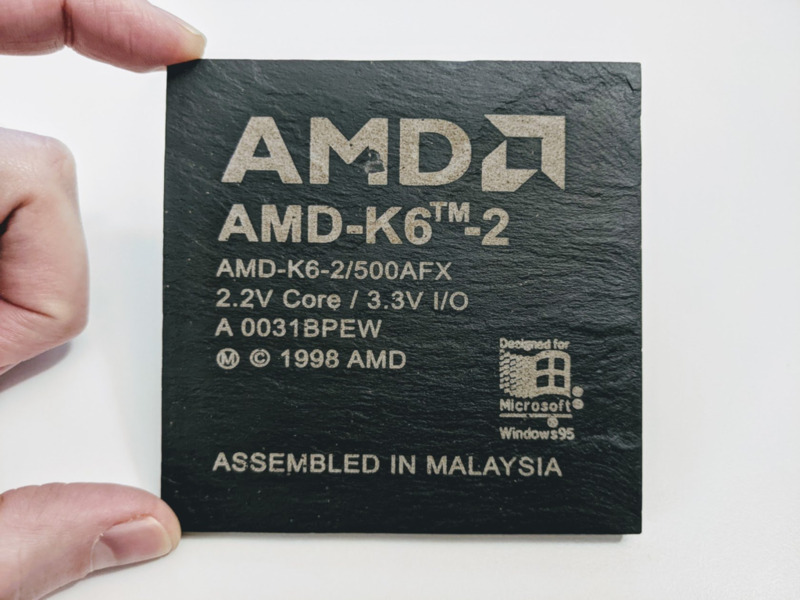

  • AMD K6-2 500AFX

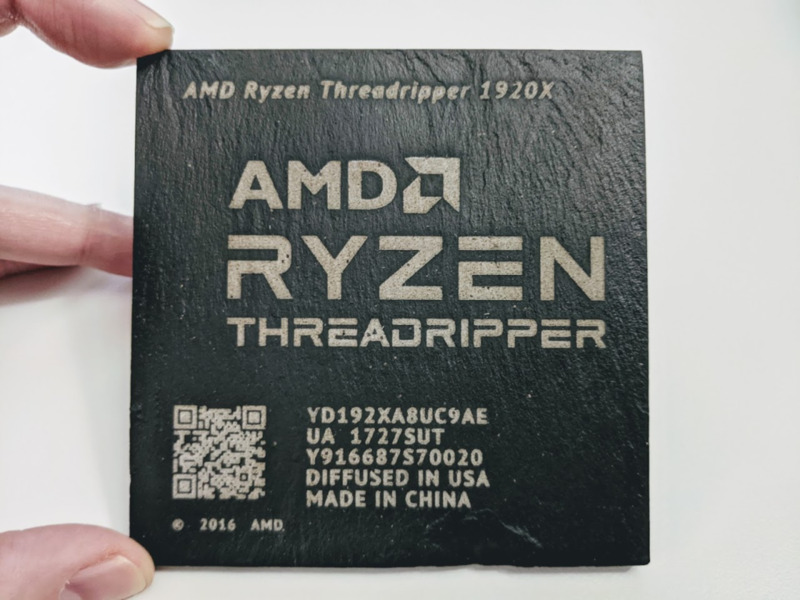

  • AMD Ryzen Threadripper 1920X

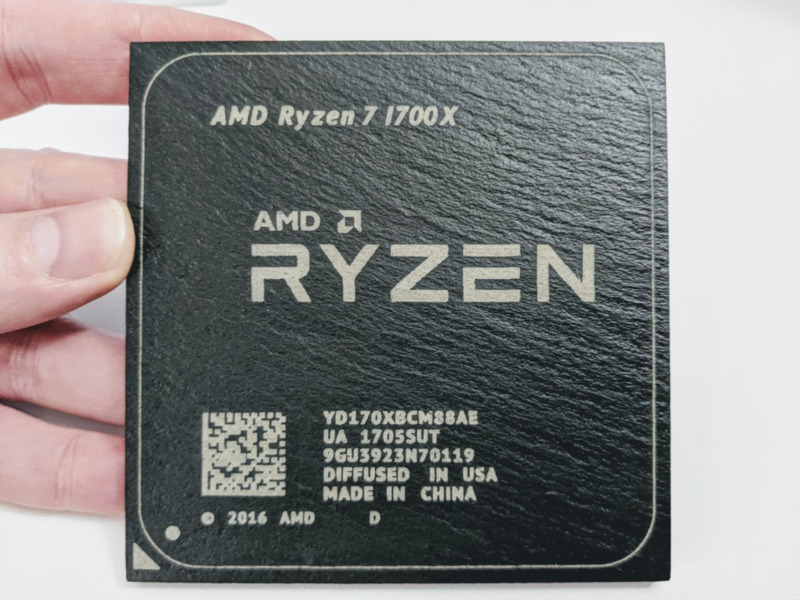

  • AMD Ryzen 7 I700X

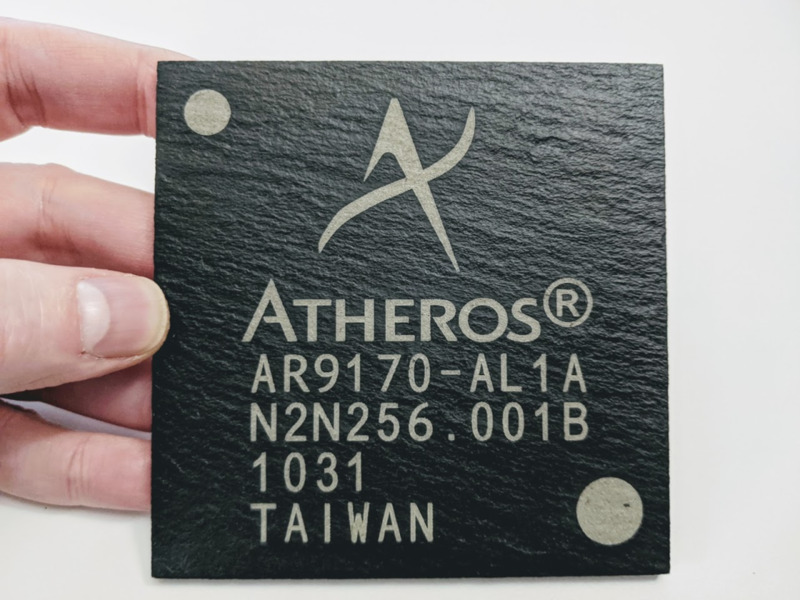

  • Atheros AR9170

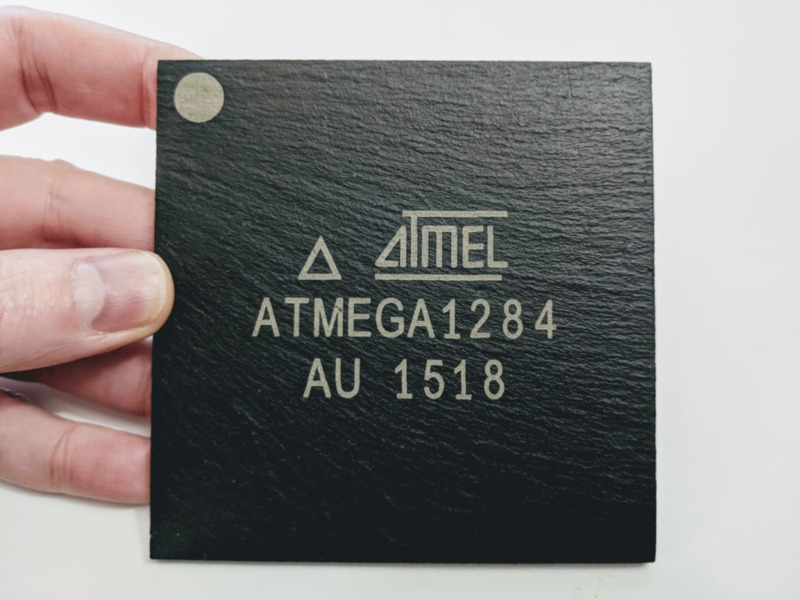

  • Atmel ATmega1284

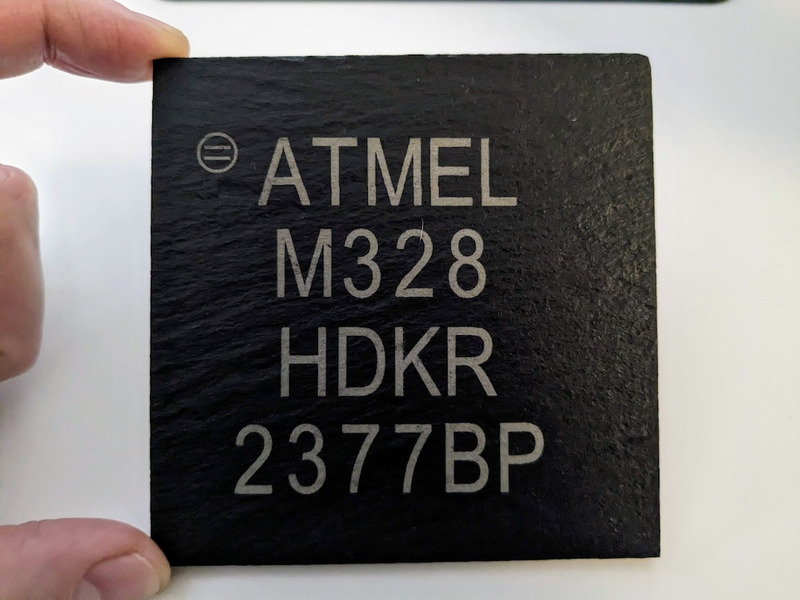

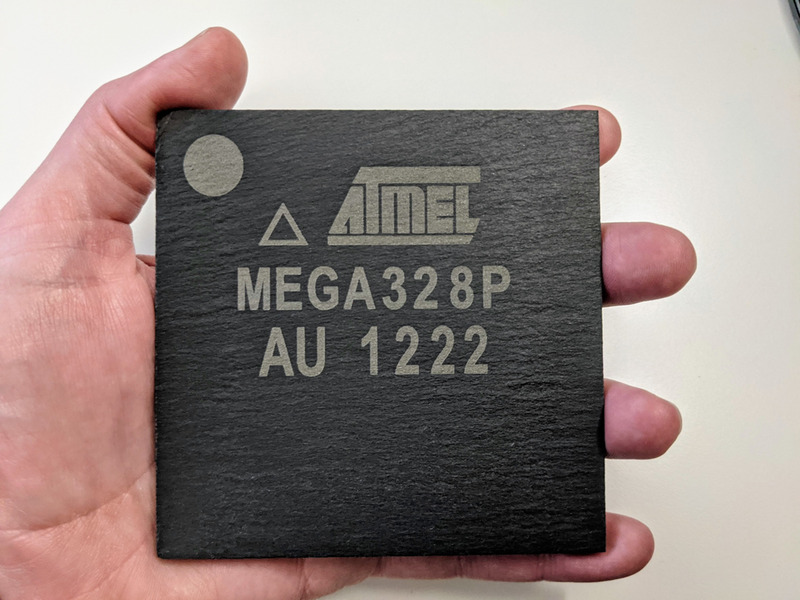

  • Atmel ATmega328P

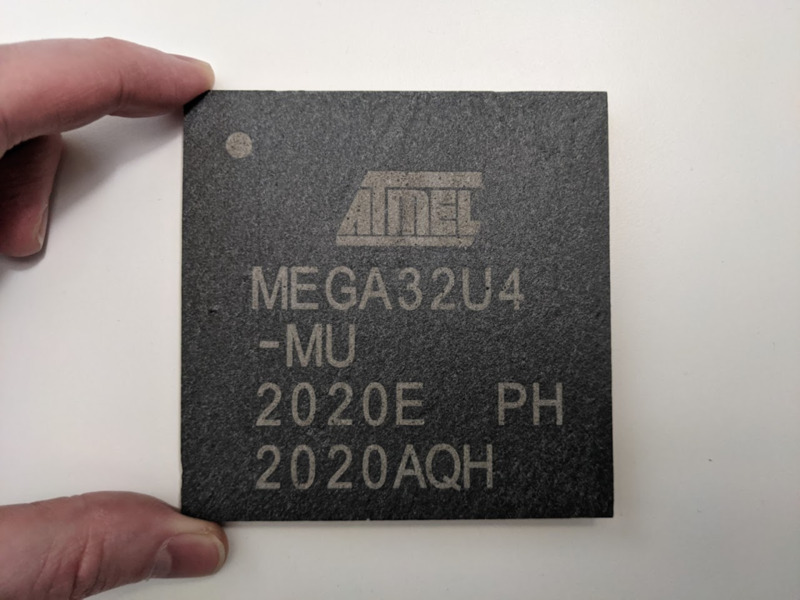

  • Atmel ATmega32u4
  • Atmel ATmega8A

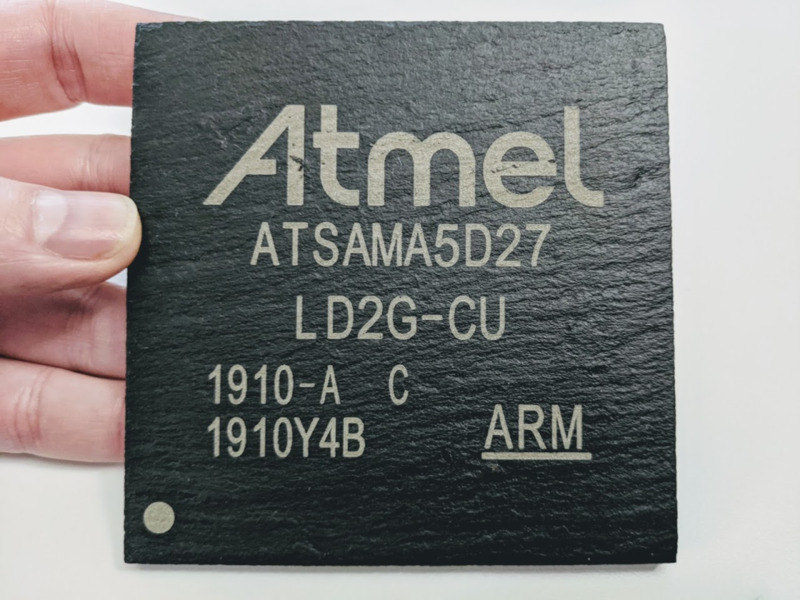

  • Atmel ATSAMA5D27
  • Atmel ATSAMD21

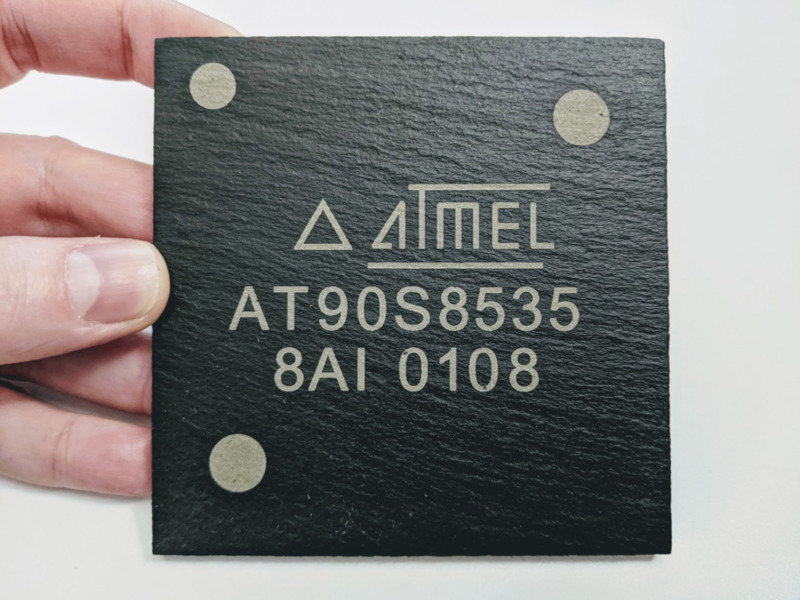

  • Atmel AT90S8535

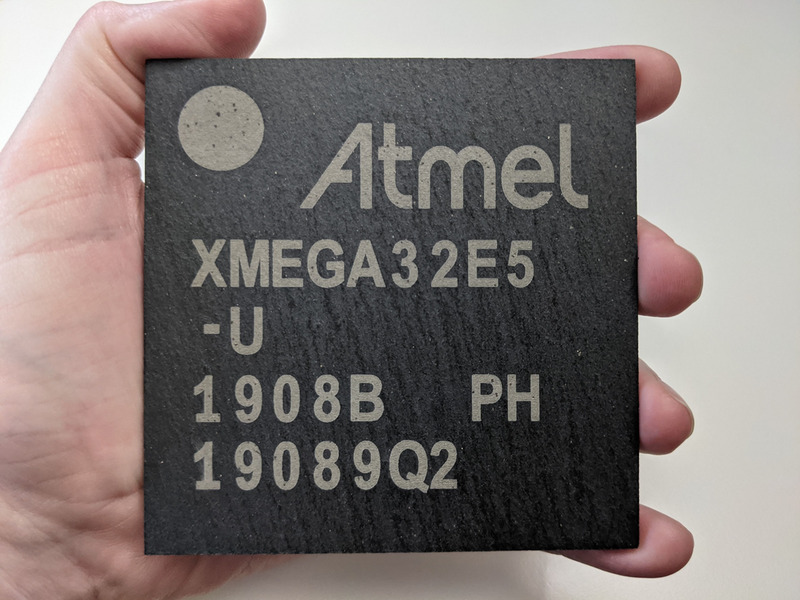

  • Atmel ATxmega32E5

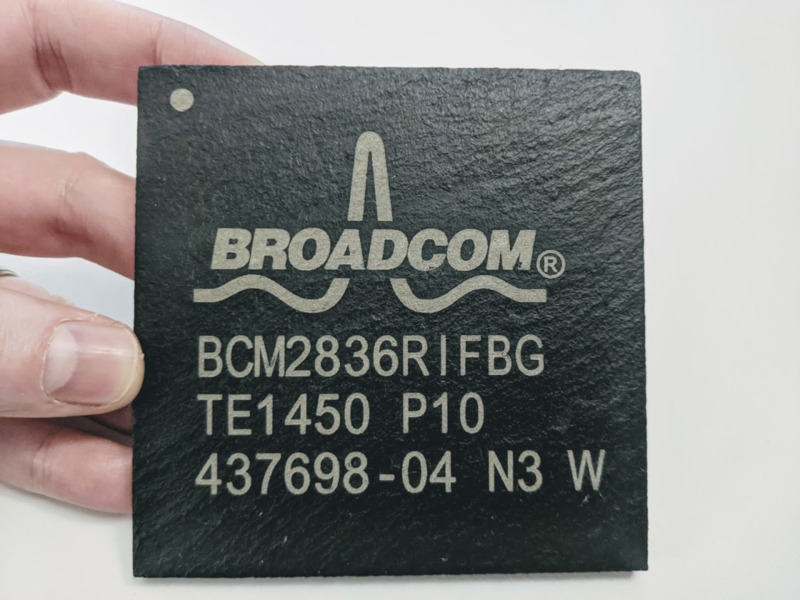

  • Broadcom BCM2836 Raspberry Pi 2 Model B CPU

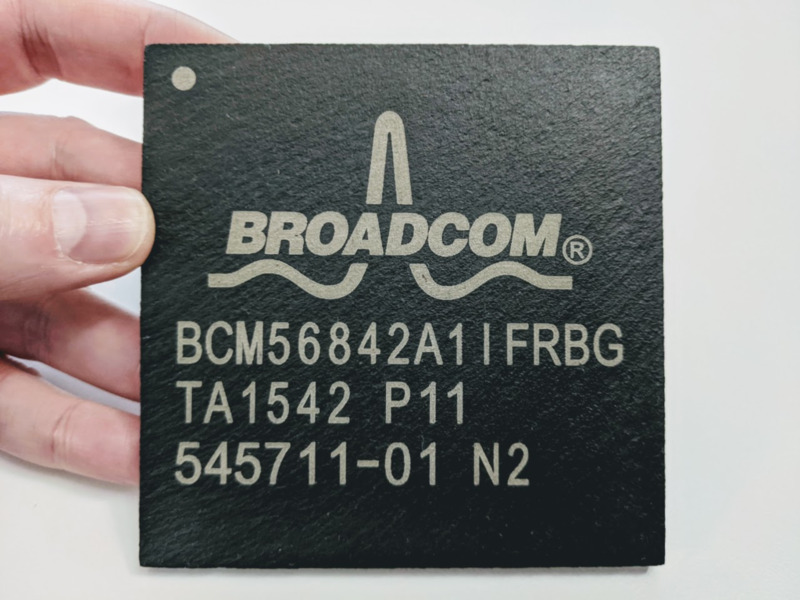

  • Broadcom Trident+ BCM56842A1IFRBG

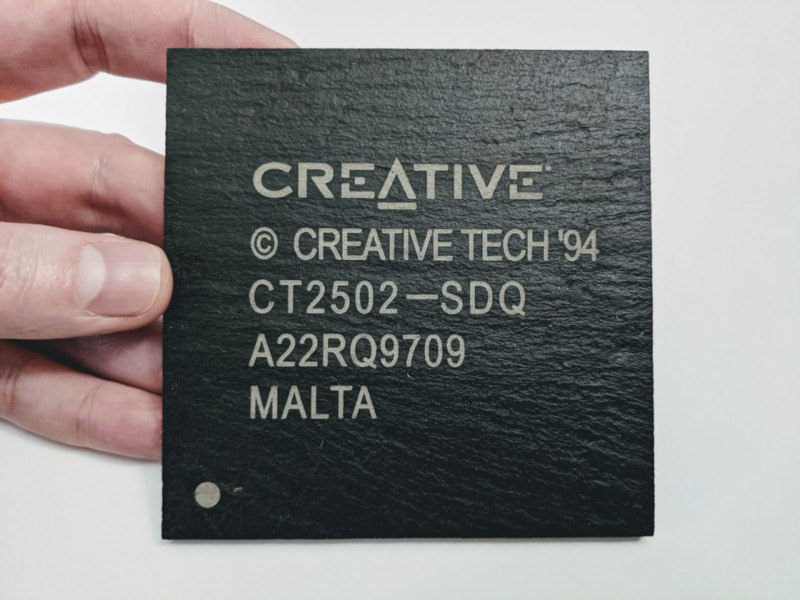

  • Creative Technology Sound Blaster VIBRA 16 CT2502

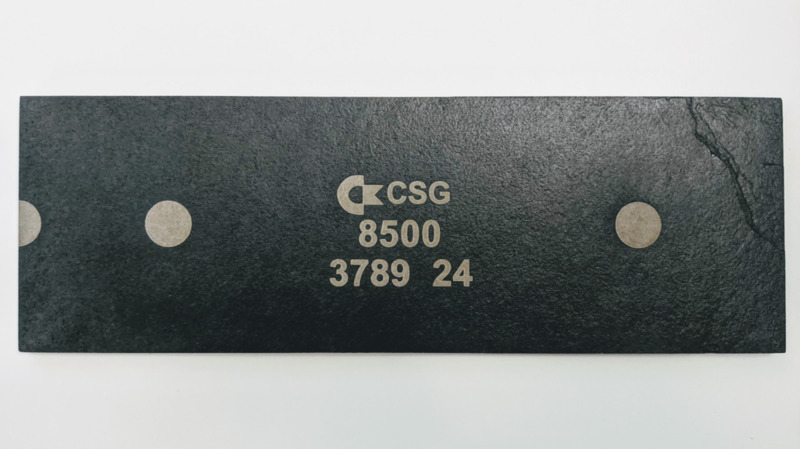

  • CSG 8500

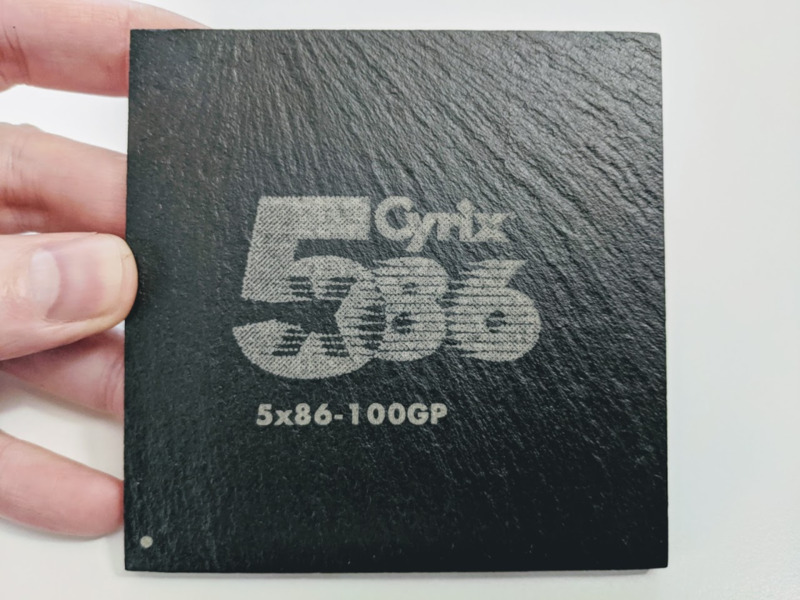

  • Cyrix 5x86-100GP

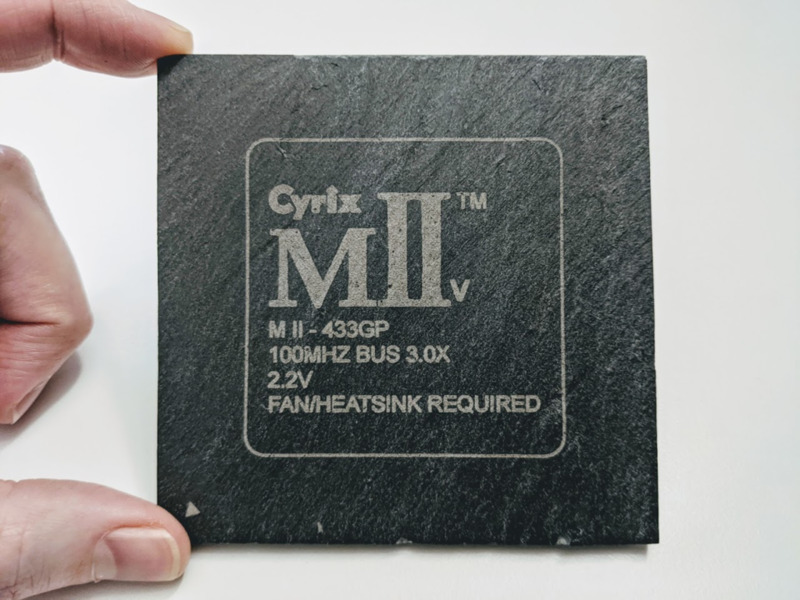

  • Cyrix MII

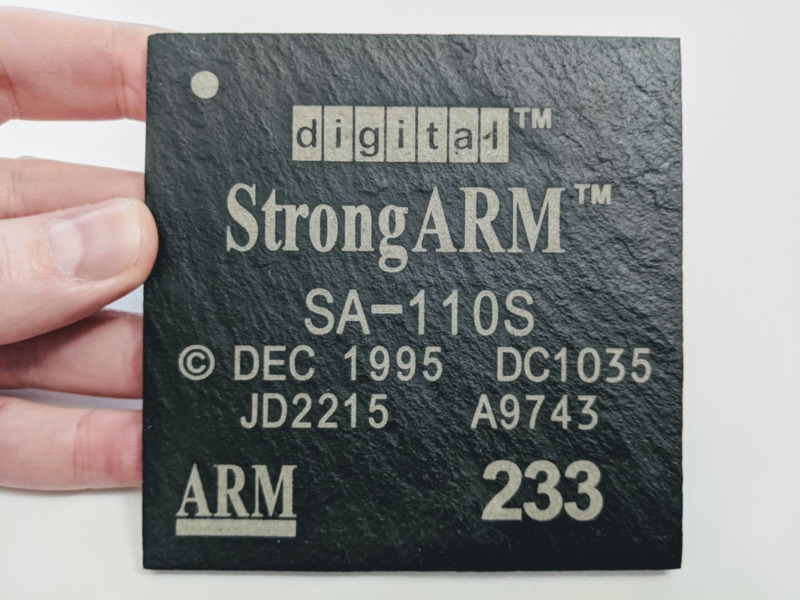

  • Digital StrongArm SA-110S

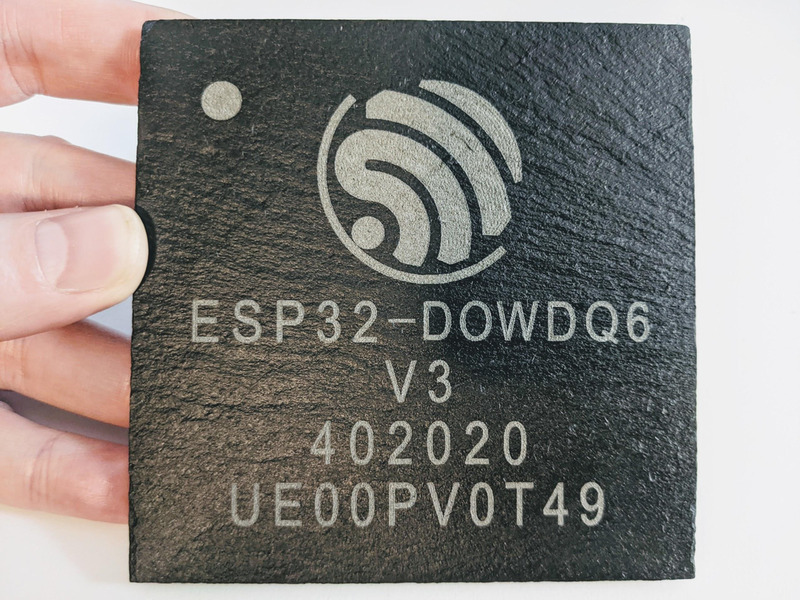

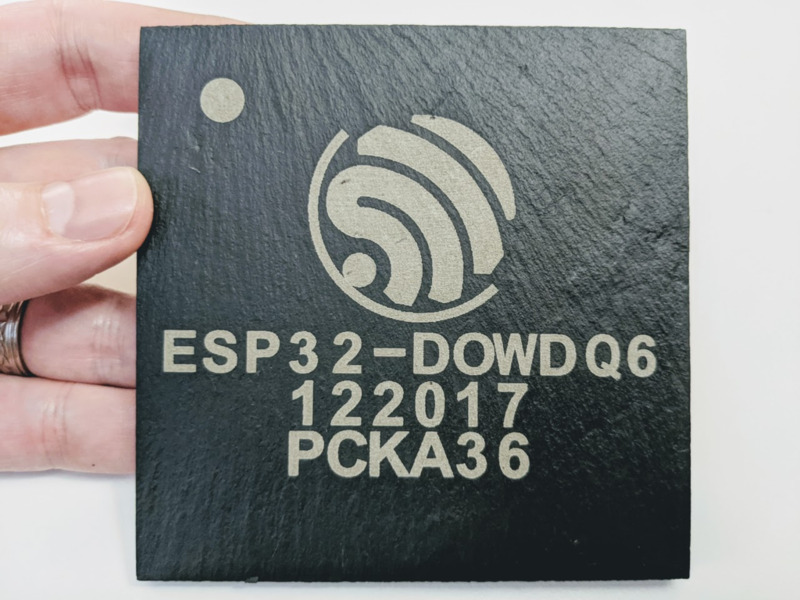

  • Espressif ESP32-D0WDQ6
  • Espressif ESP32-PICO-D4

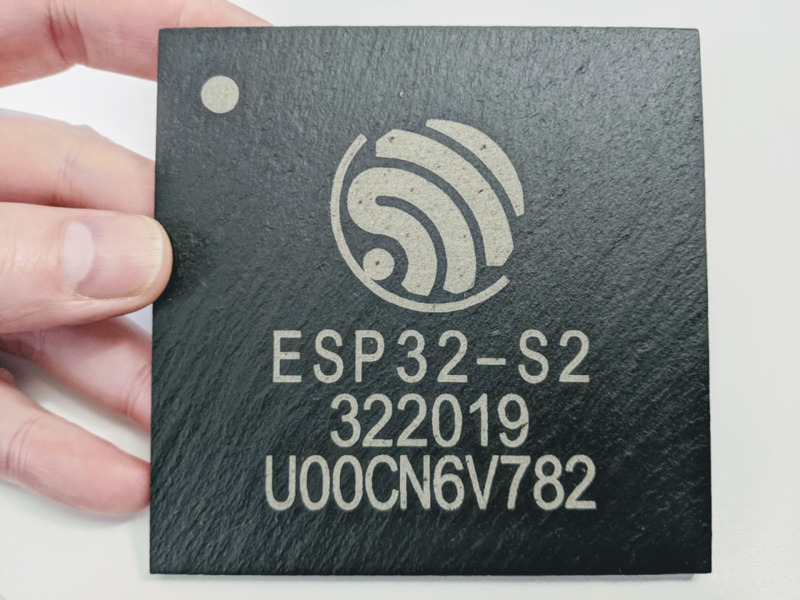

  • Espressif ESP32-S2

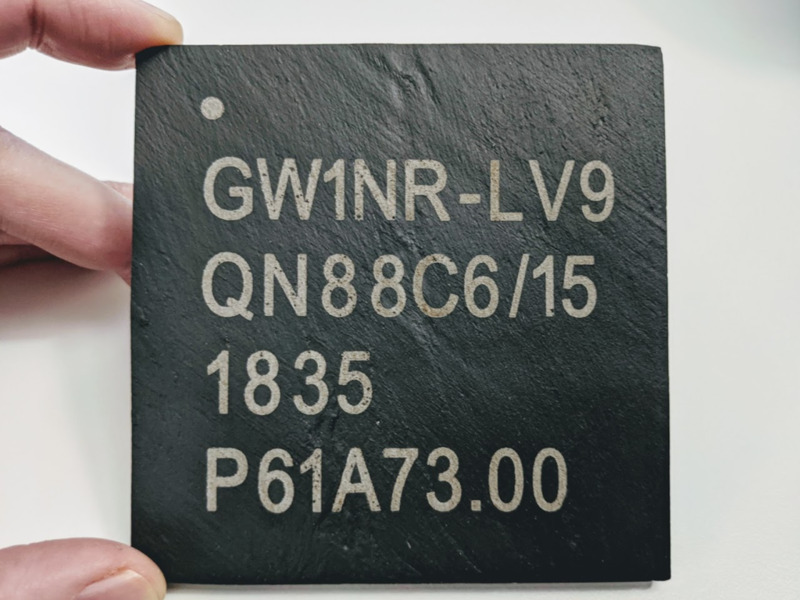

  • Gowin GW1NR-LV9

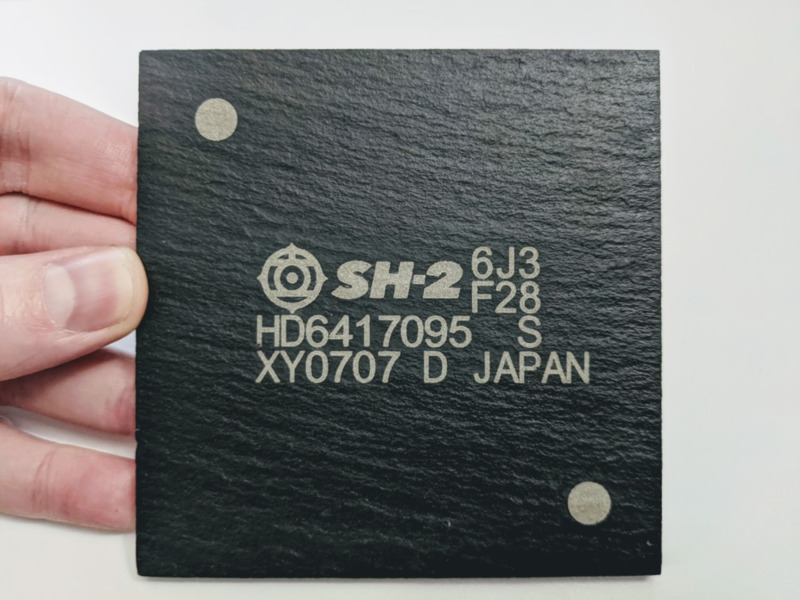

  • Hitachi SH-2 HD6417095 (Sega Saturn, Sega 32X and Capcom CP System III)

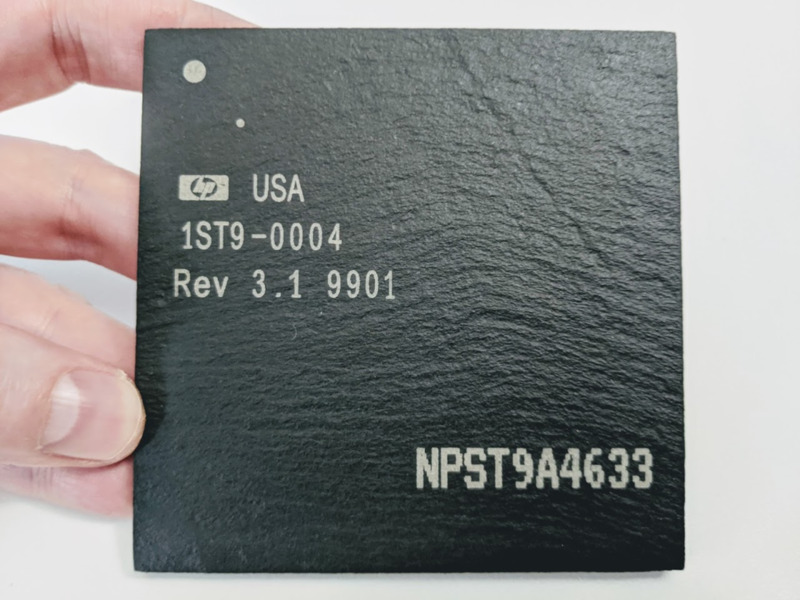

  • HP PA-8000 (PCX-U) Onyx

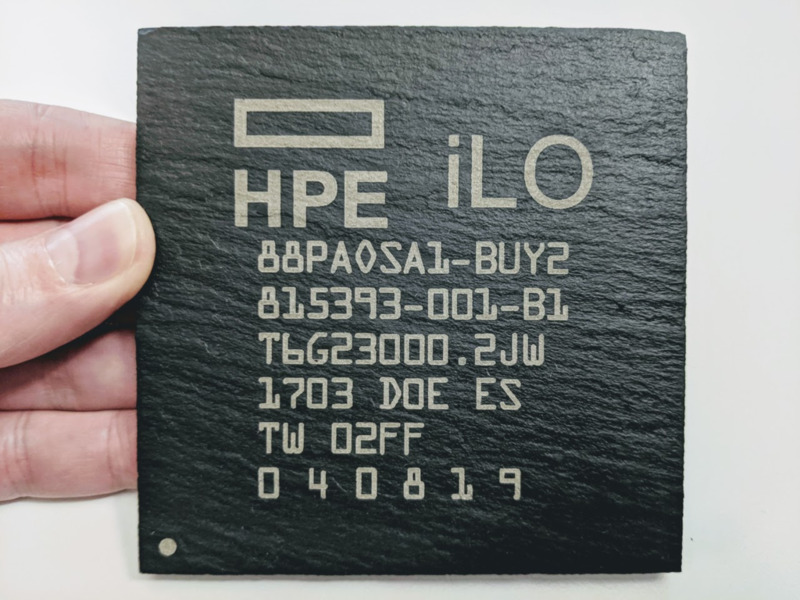

  • HPE iLO 88PA0SA1-BUY2

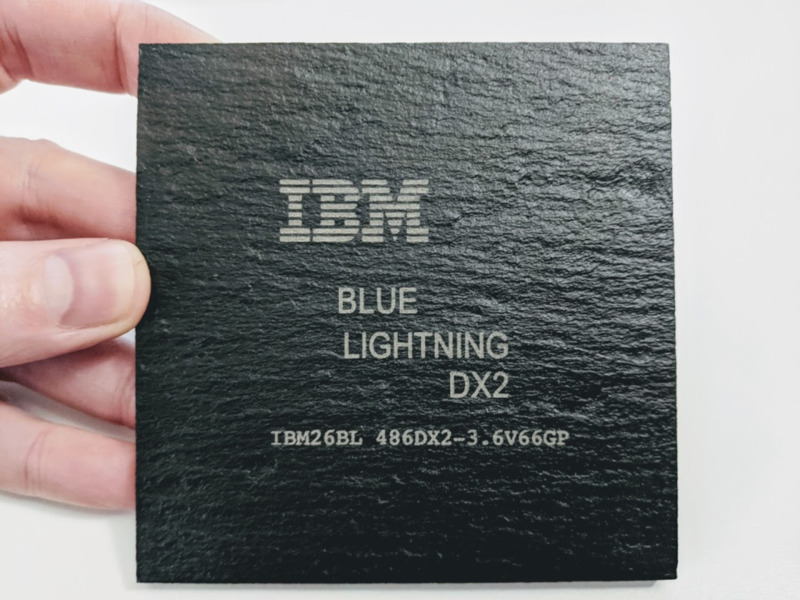

  • IBM Blue Lightning DX2

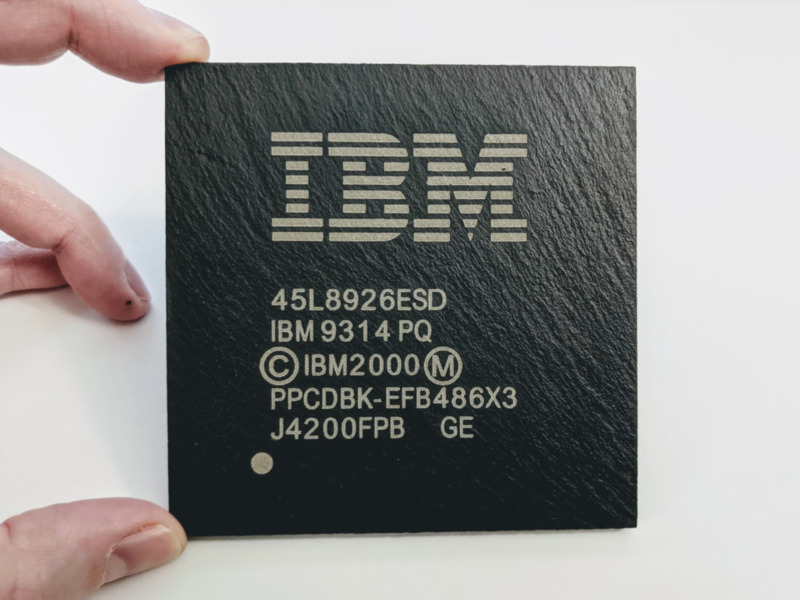

  • IBM Gekko - Nintendo GameCube CPU

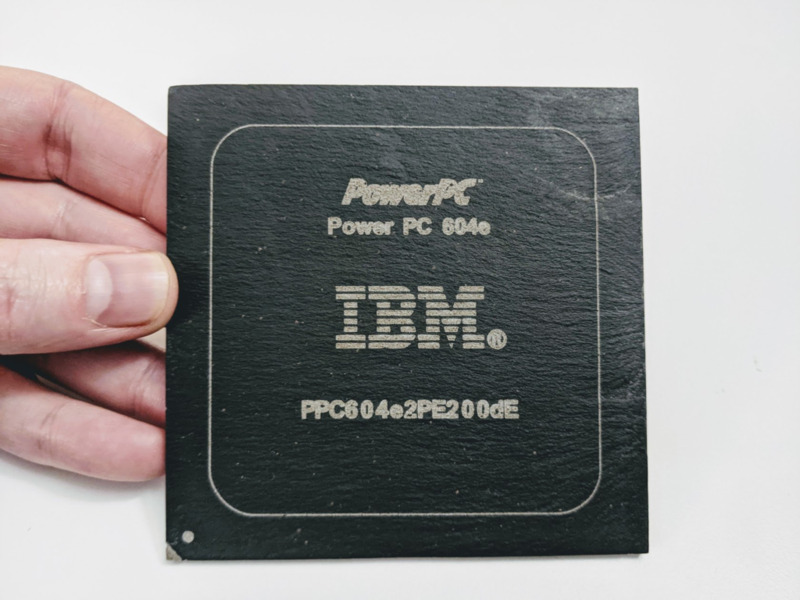

  • IBM PowerPC 604e

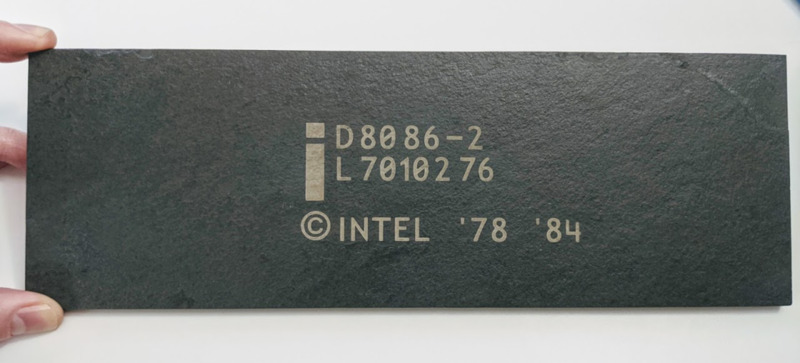

  • Intel D8086-2

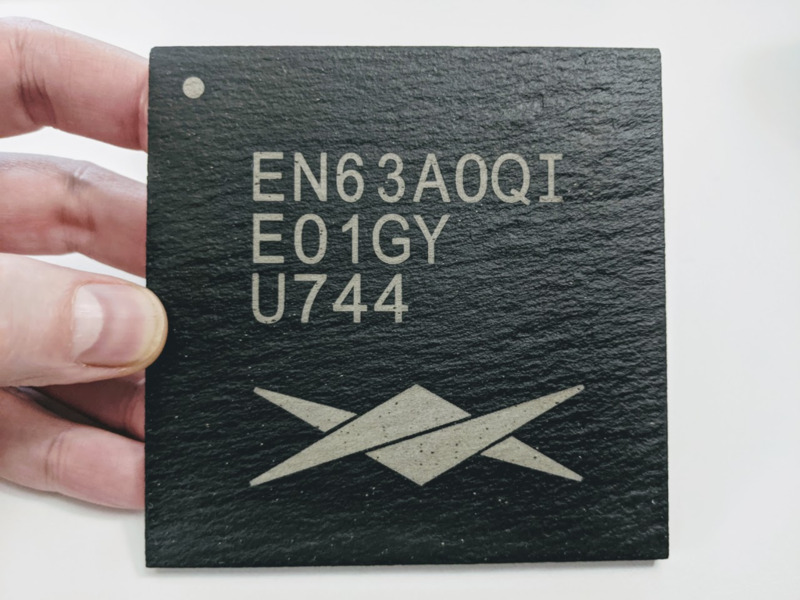

  • Intel Enpirion EN63A0QI (Top)

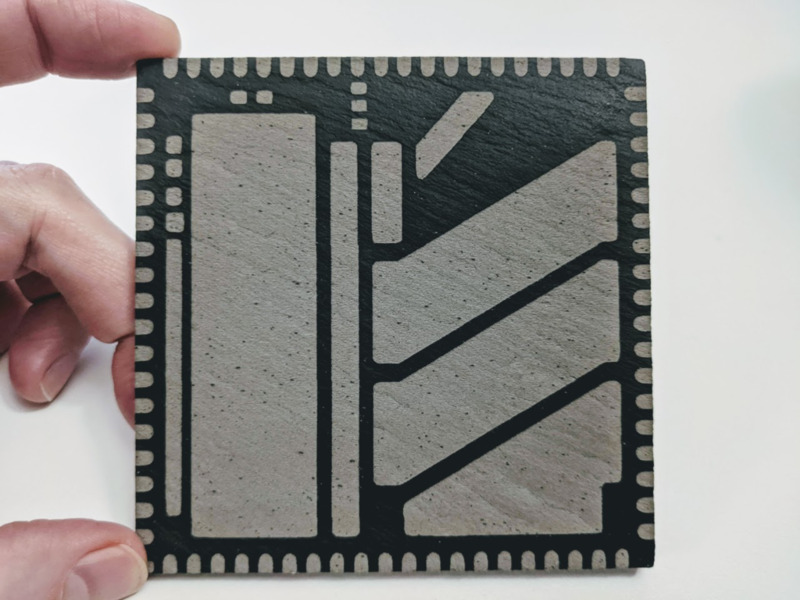

  • Intel Enpirion EN63A0QI (Bottom)

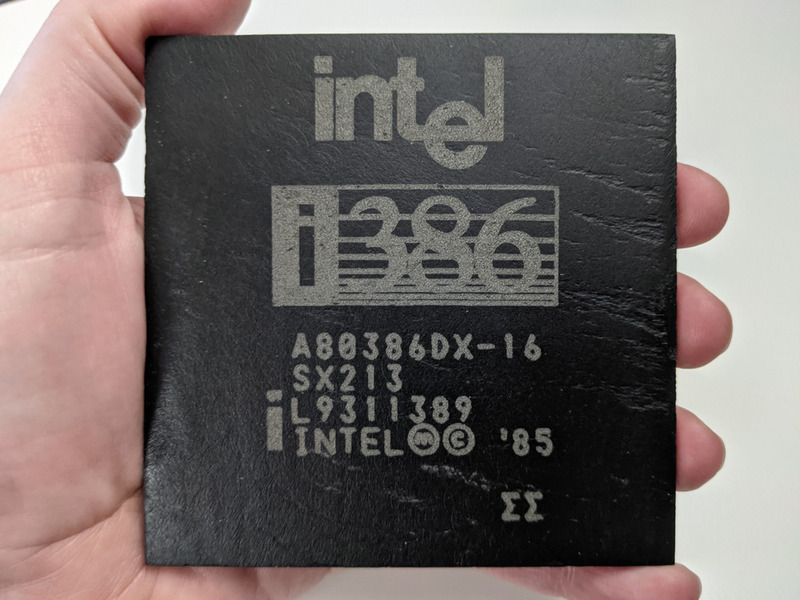

  • Intel i386 DX-16

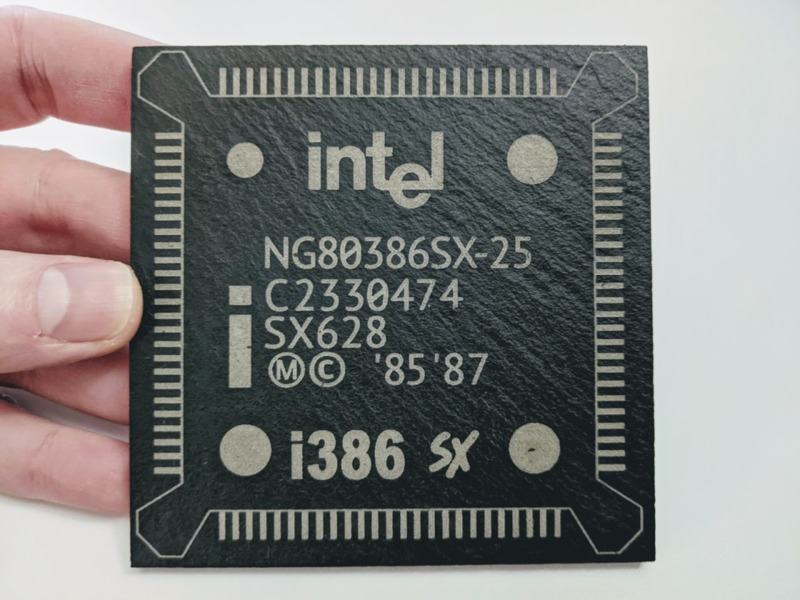

  • Intel i386 SX-25
  • Intel i486 DX-33

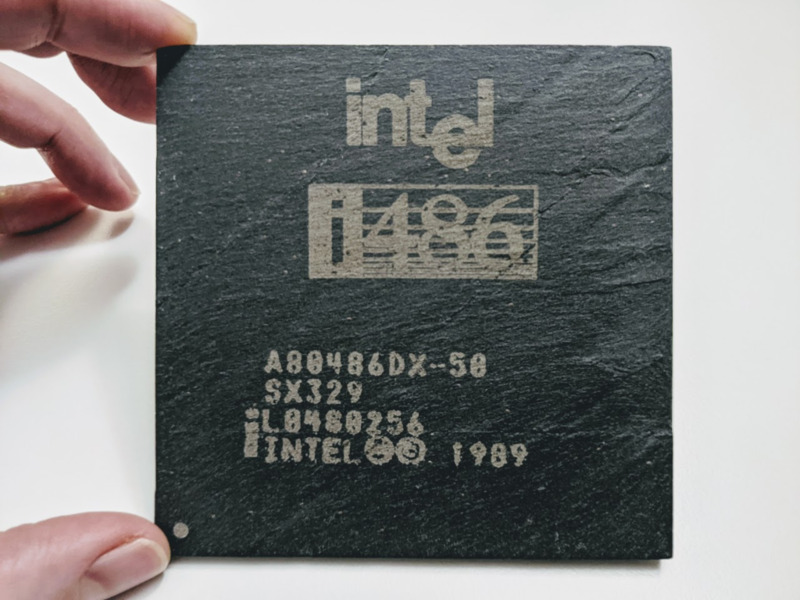

  • Intel i486 DX-50
  • Intel i486 DX2-50

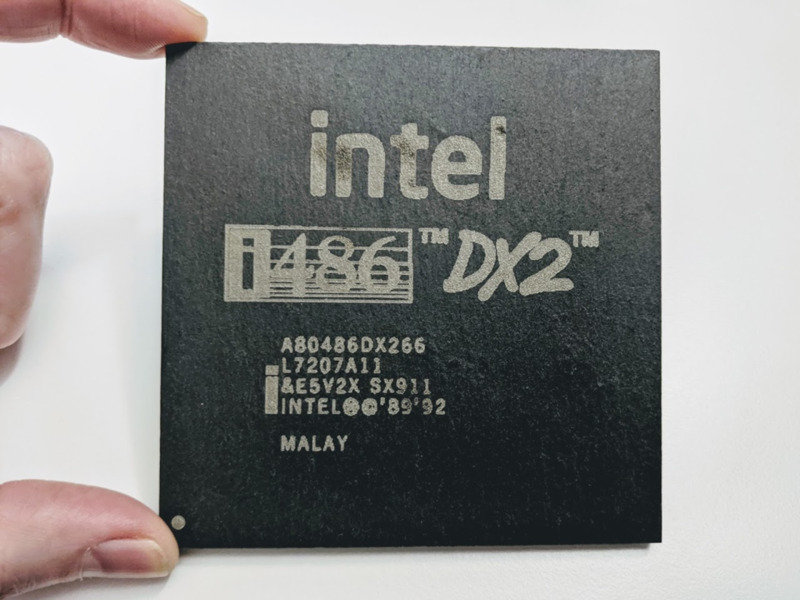

  • Intel i486 DX2-66

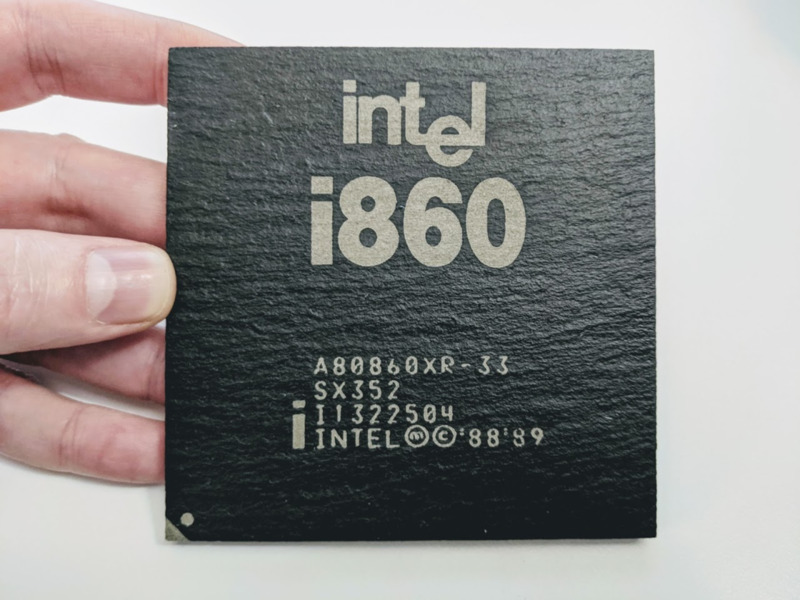

  • Intel i860 XR-33

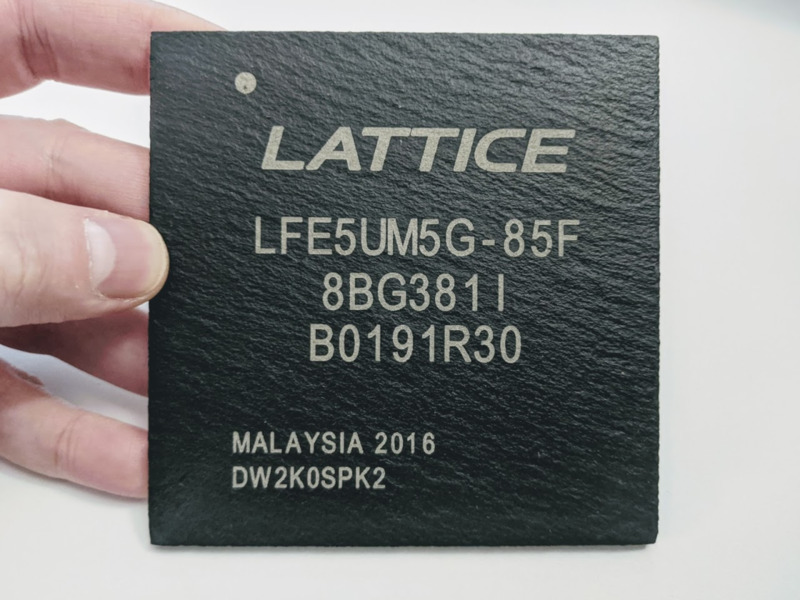

  • Lattice Semiconductor ECP5-5G FPGA

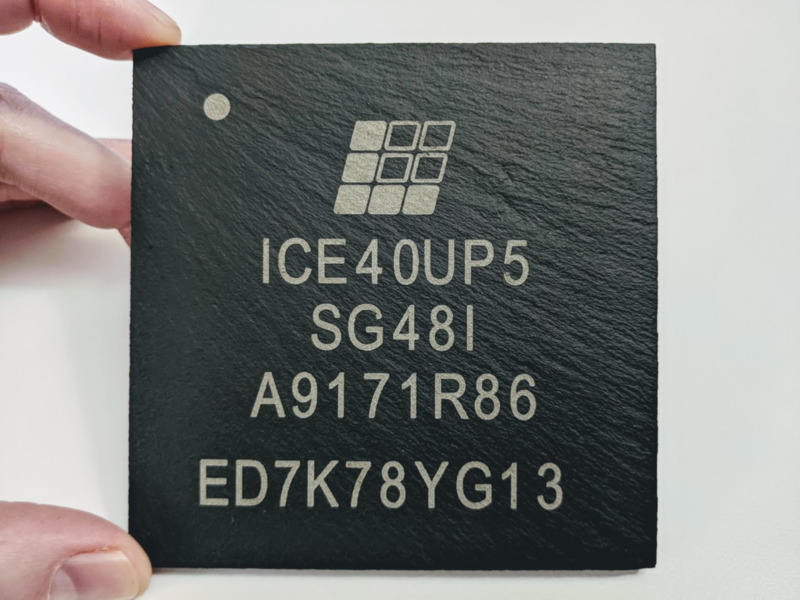

  • Lattice Semiconductor ICE40UP5K
  • Linear Technology LTC2208

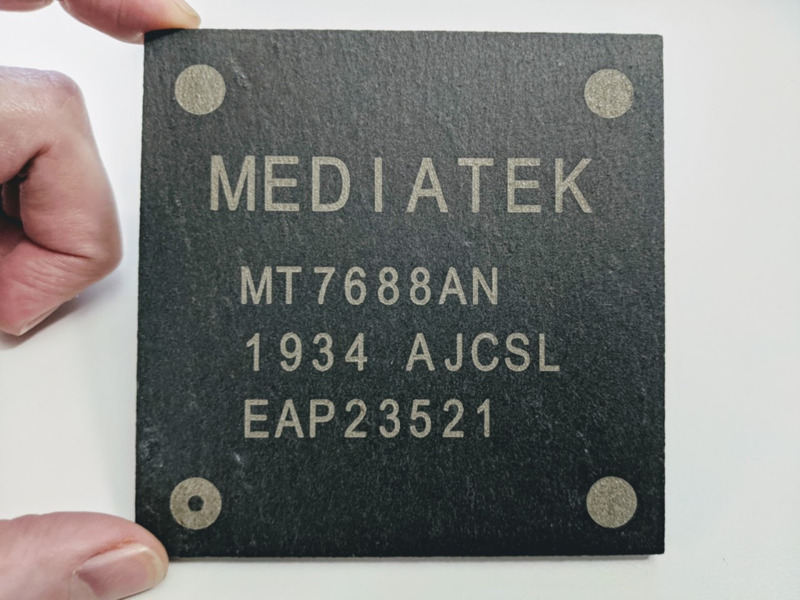

  • MediaTek MT7688AN

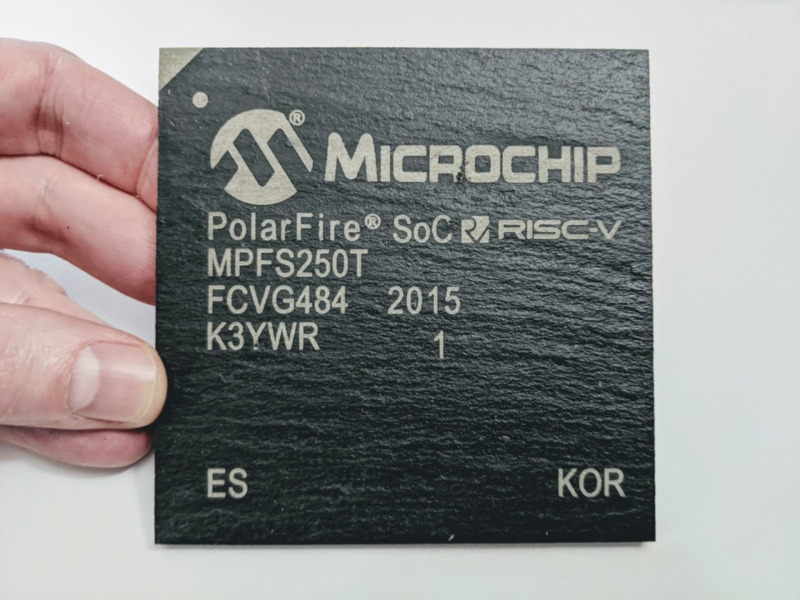

  • Microchip Technology Microsemi PolarFire SoC MPFS250T

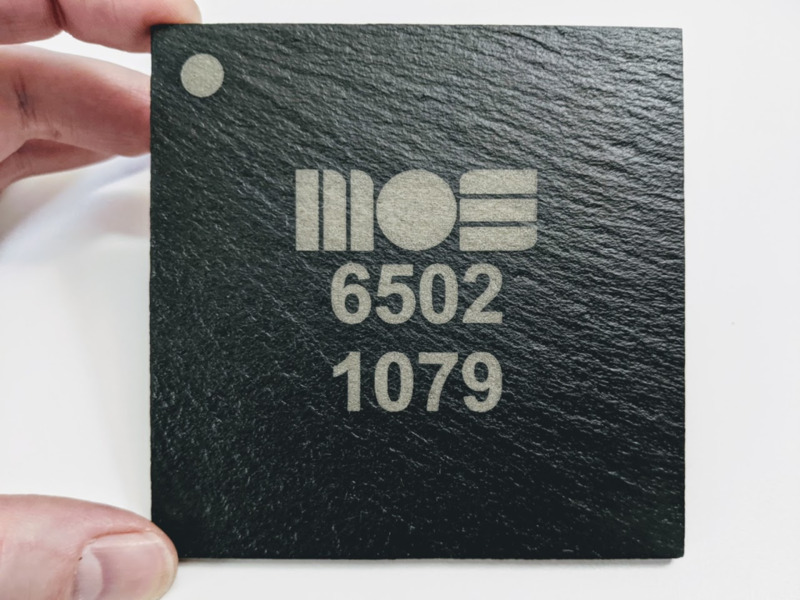

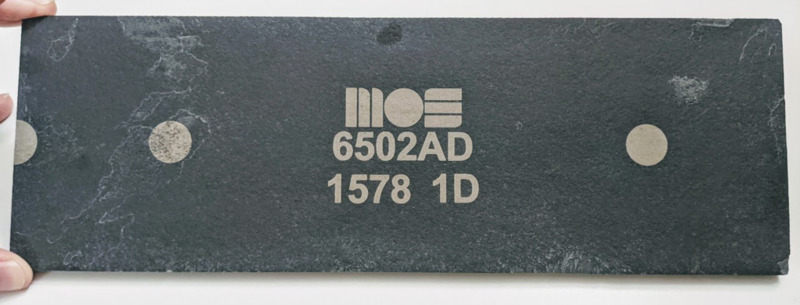

  • MOS Technology 6502AD

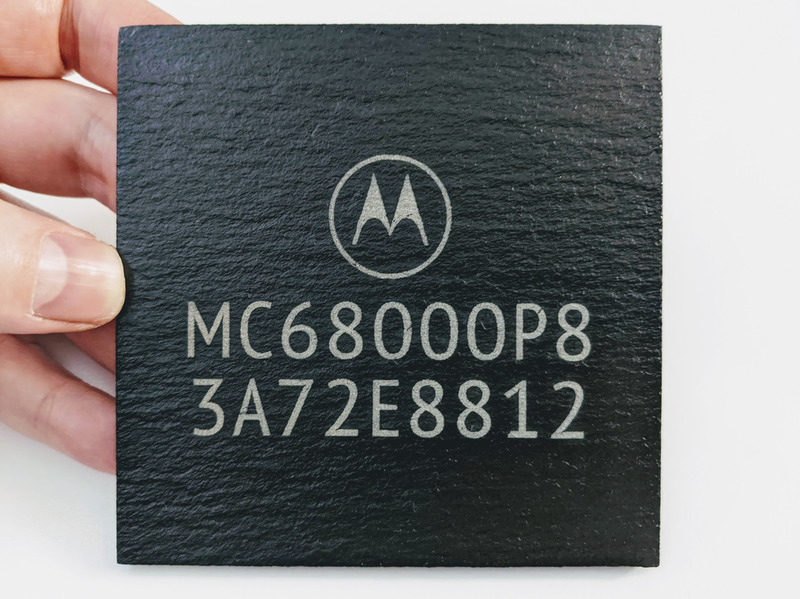

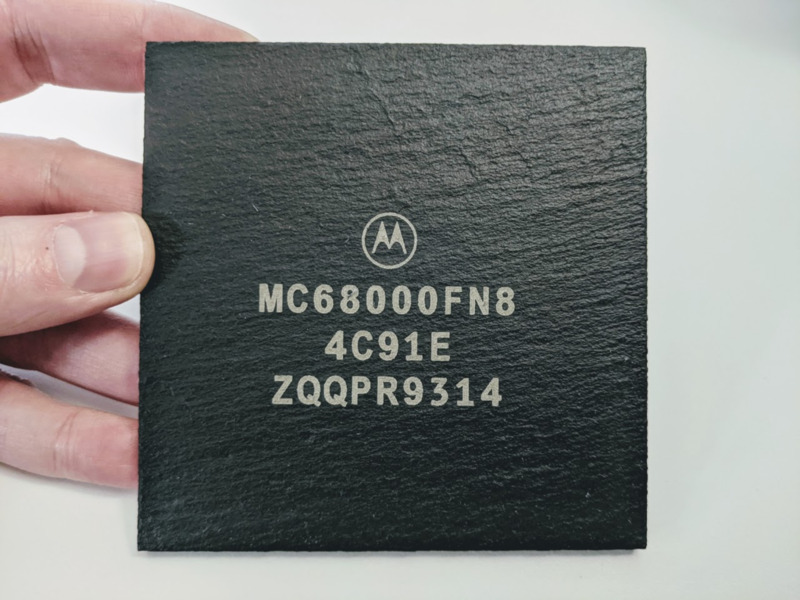

  • Motorola 68000 (m68k)

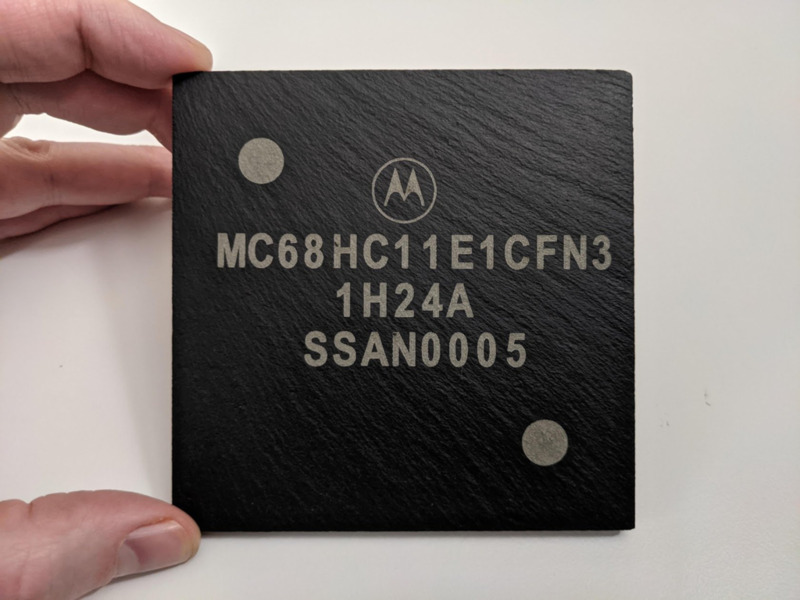

  • Motorola 68HC11

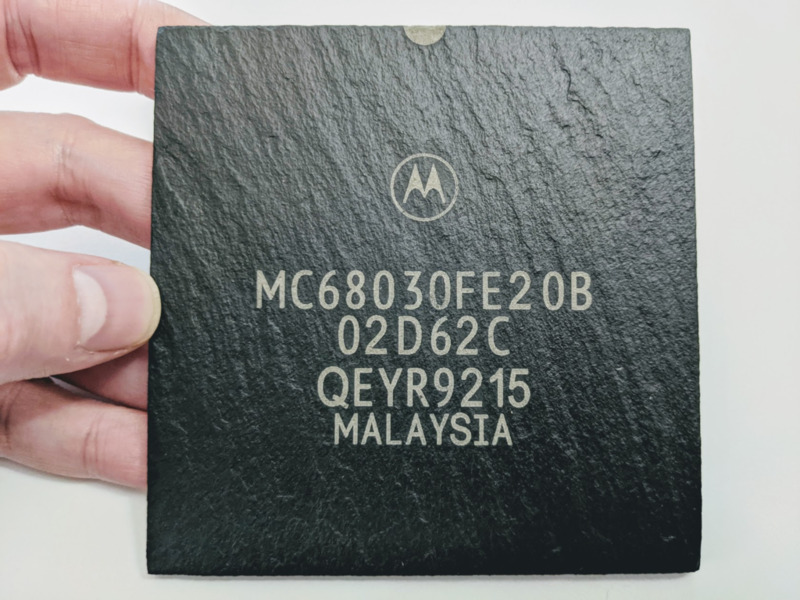

  • Motorola MC68030FE20

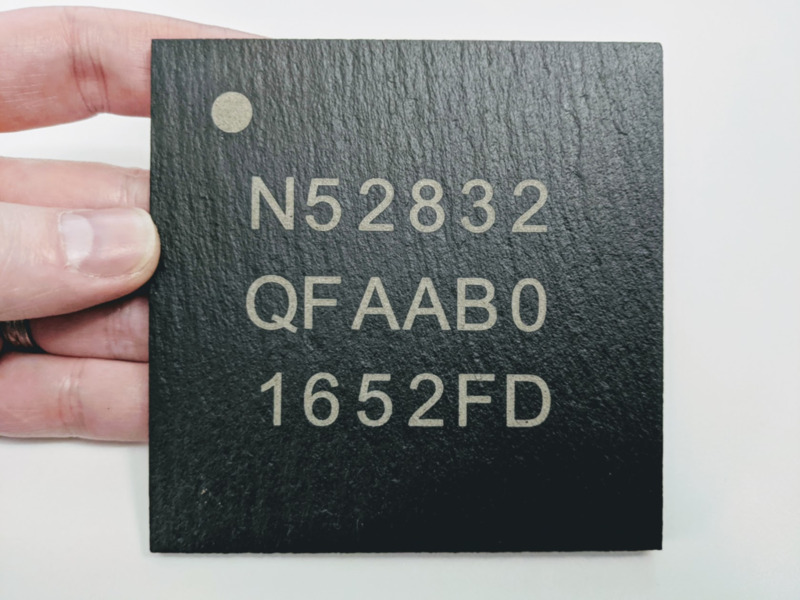

  • Nordic Semiconductor nRF52832

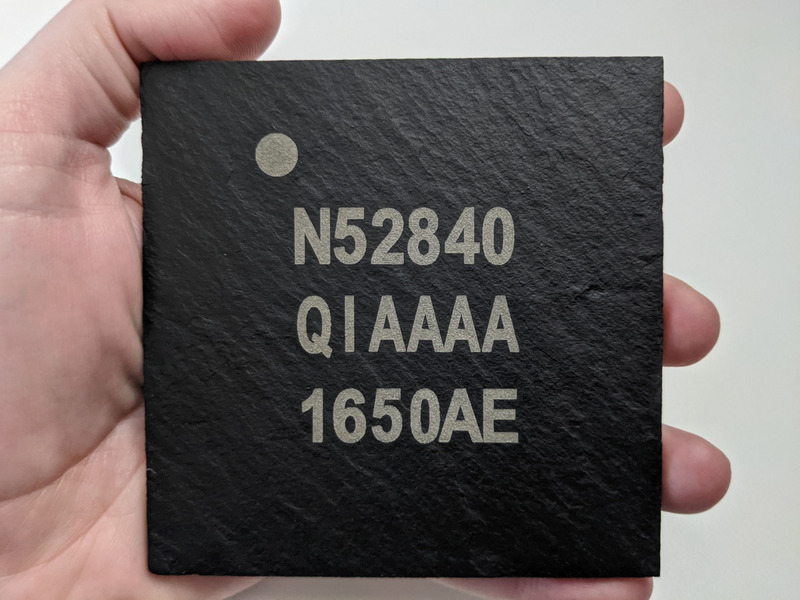

  • Nordic Semiconductor nRF52840

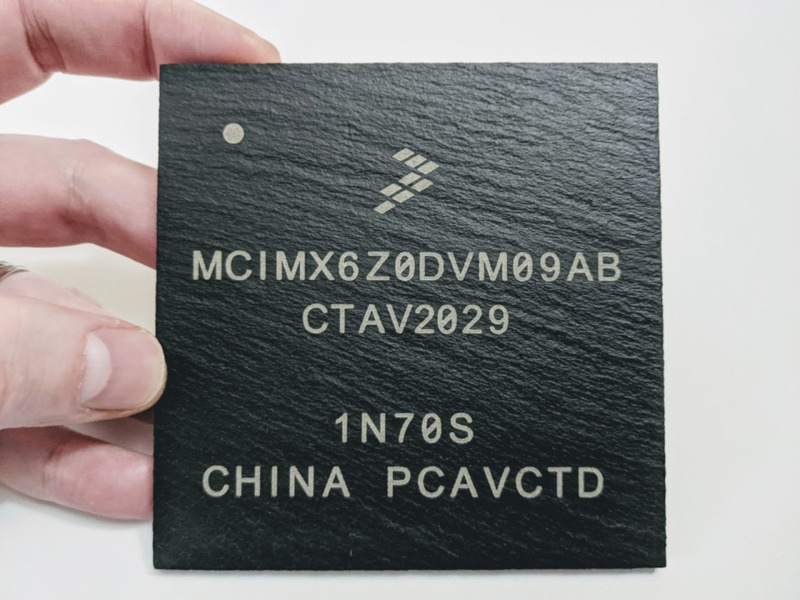

  • NXP i.MX6 MCIMX6G3DVM05AB

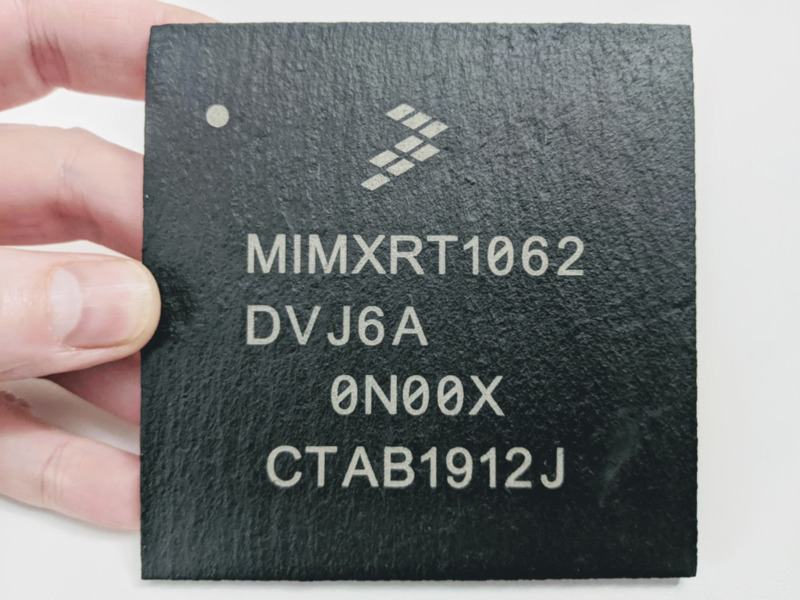

  • NXP i.MX RT1062 (PJRC Teensy 4)

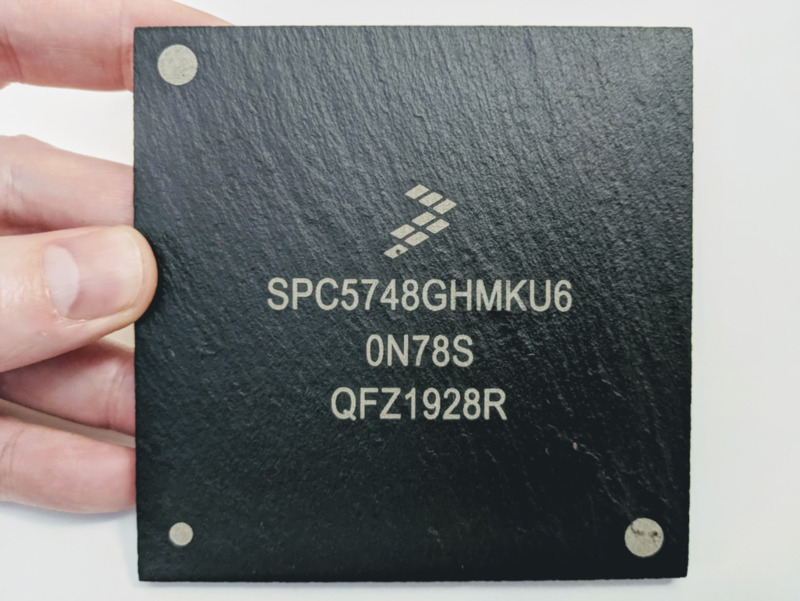

  • NXP SPC5748GHMKU6
  • Nintendo DS CPU NTR

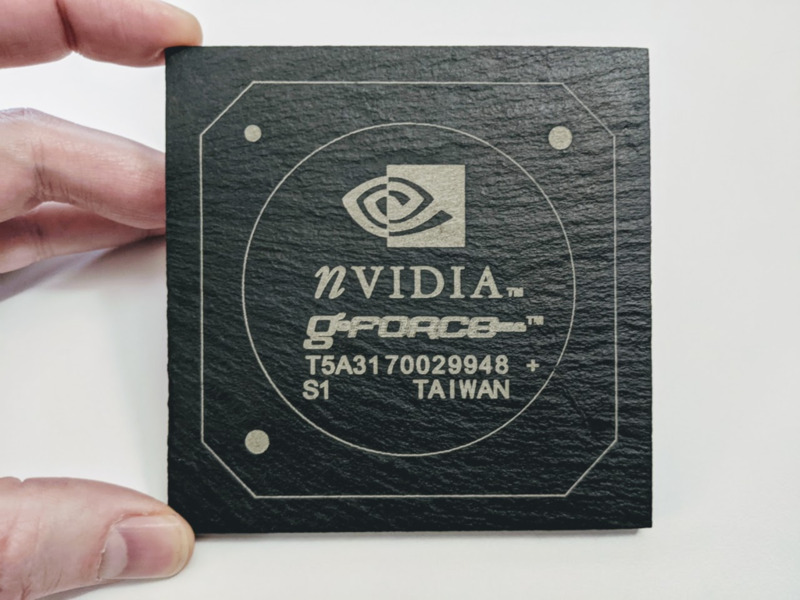

  • Nvidia GeForce 256

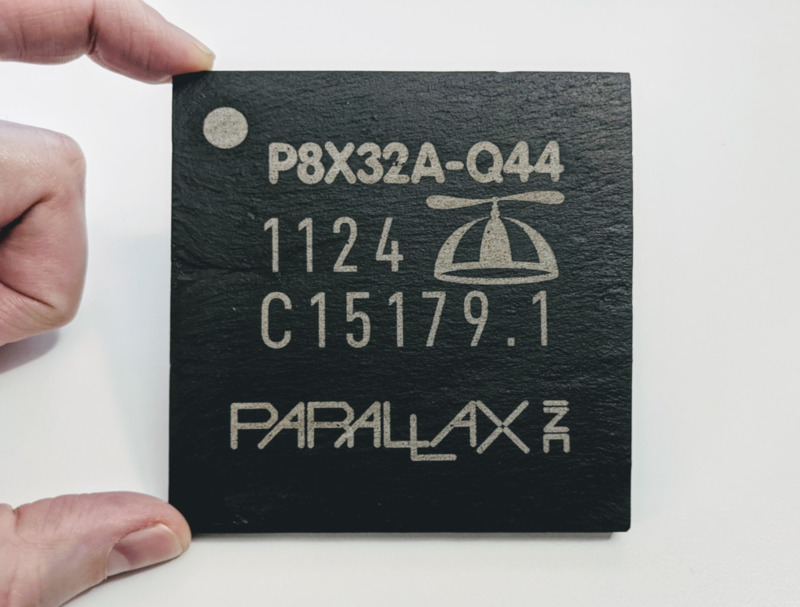

  • Parallax Propeller P8X32A-Q44

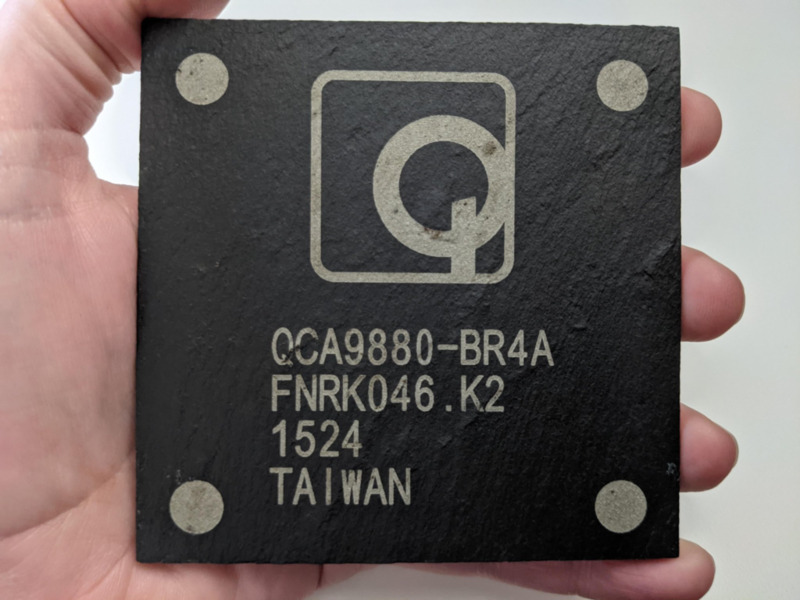

  • Qualcomm QCA9880-BR4A

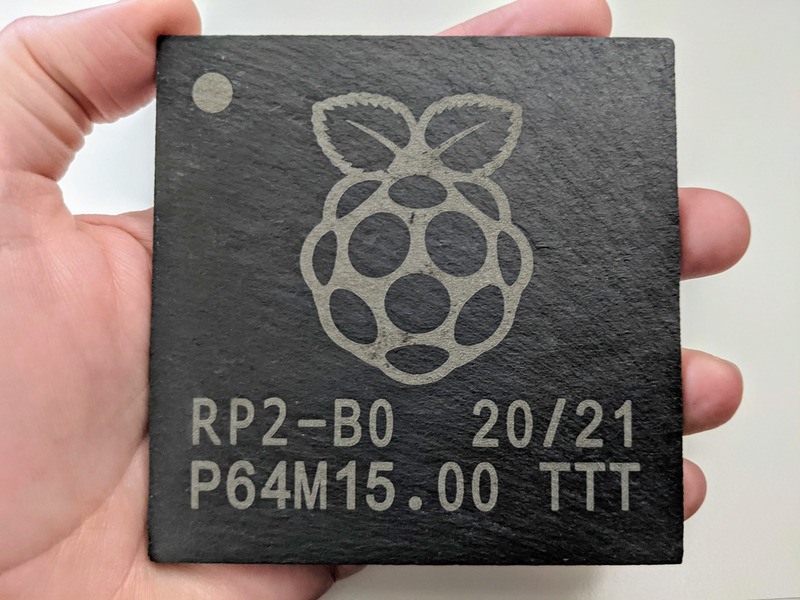

  • Raspberry Pi RP2040

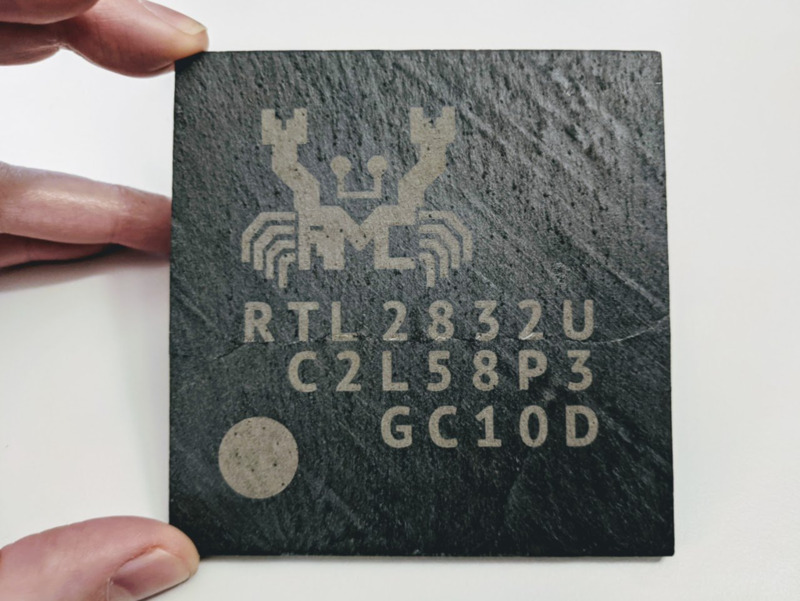

  • RealTek RTL2832U

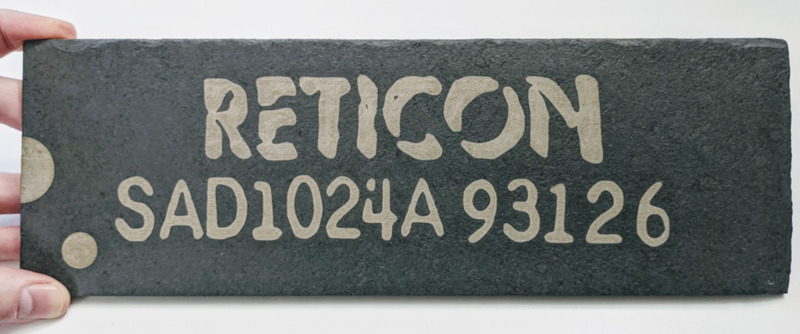

  • Reticon SAD1024 BBD (Bucket Brigade Device) Analog Delay/Flanger

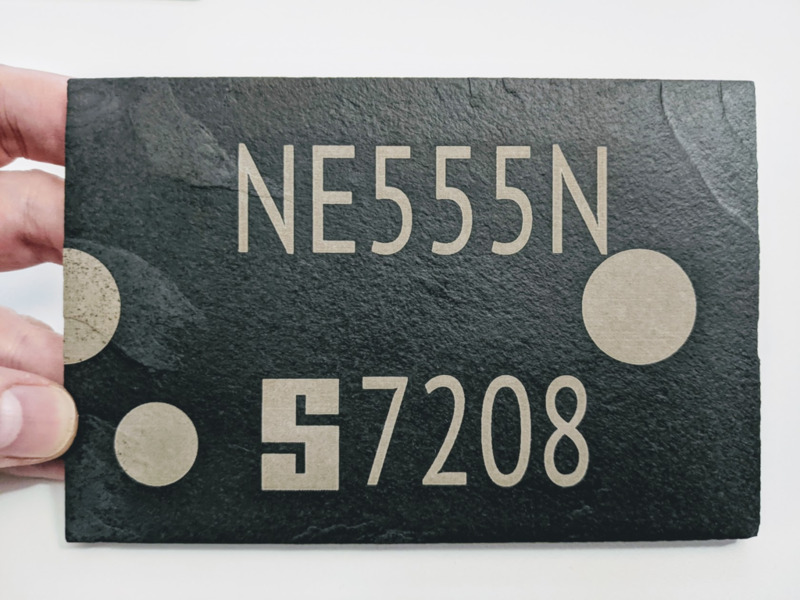

  • Signetics NE555N

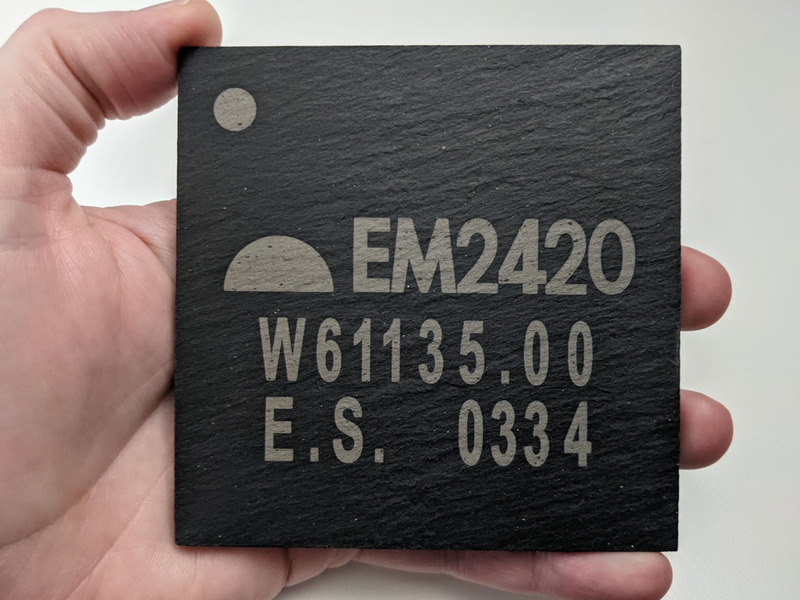

  • Silicon Labs EM2420

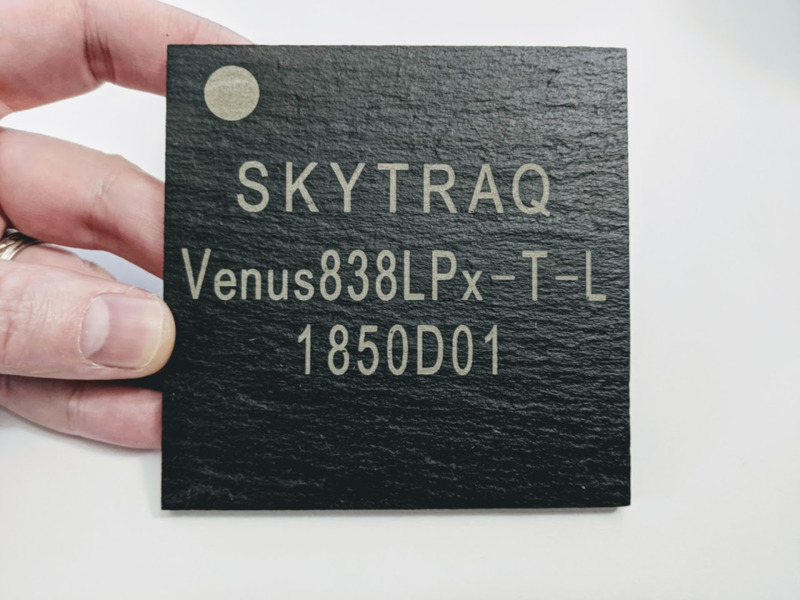

  • Skytraq Venus838LPx-T-L GPS Receiver

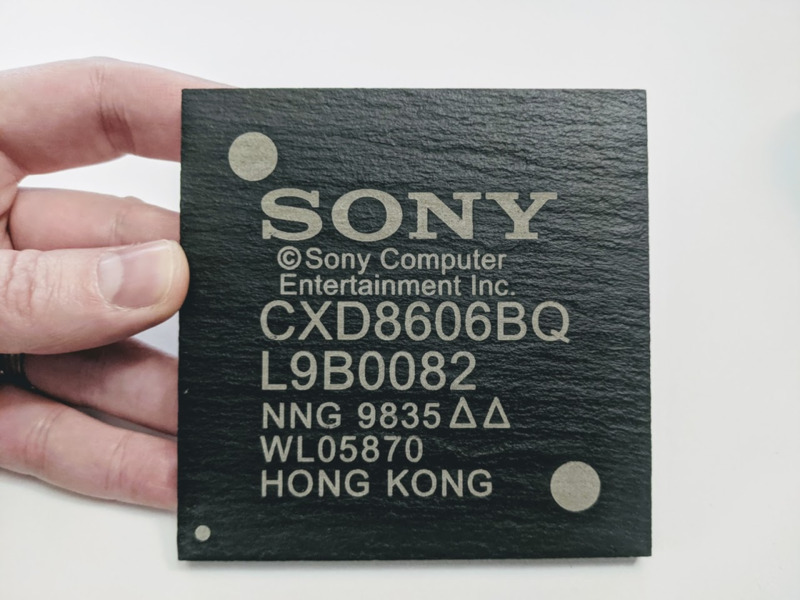

  • Sony PlayStation CPU CXD8606BQ

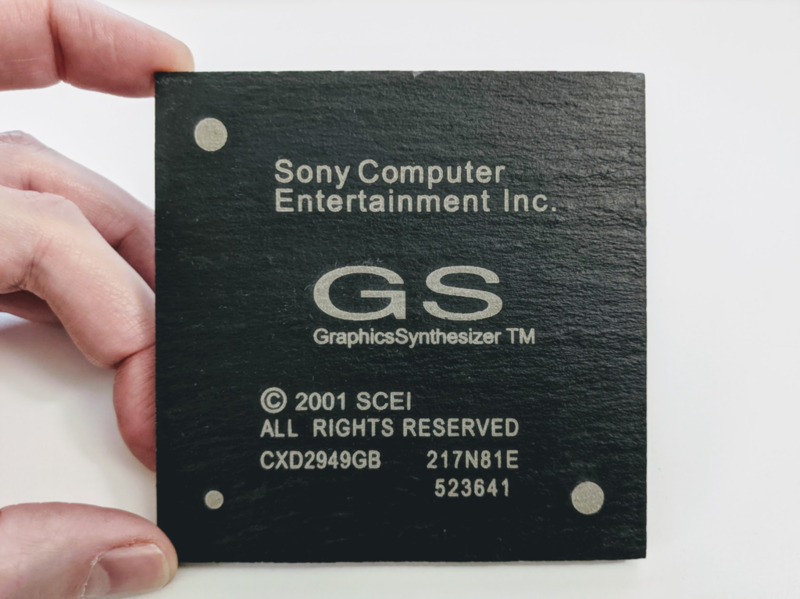

  • Sony PlayStation 2 GraphicsSynthesizer

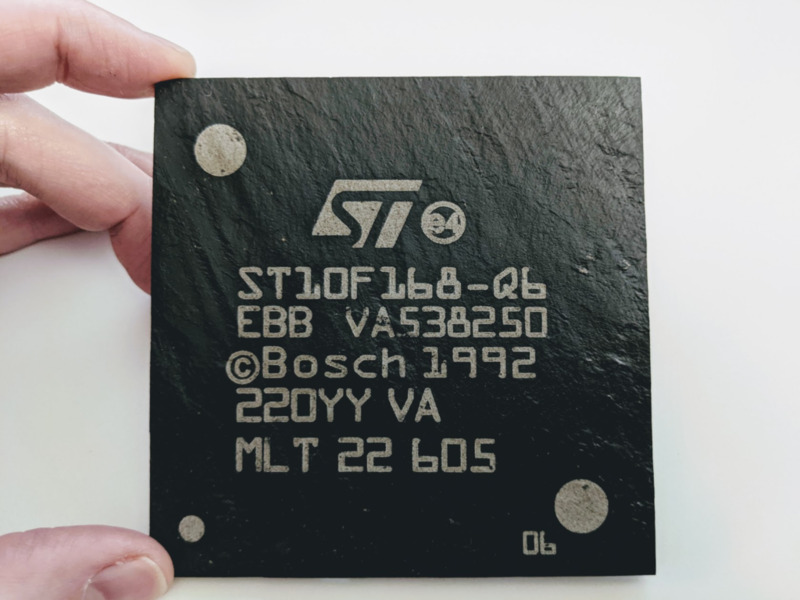

  • ST10F168-Q6

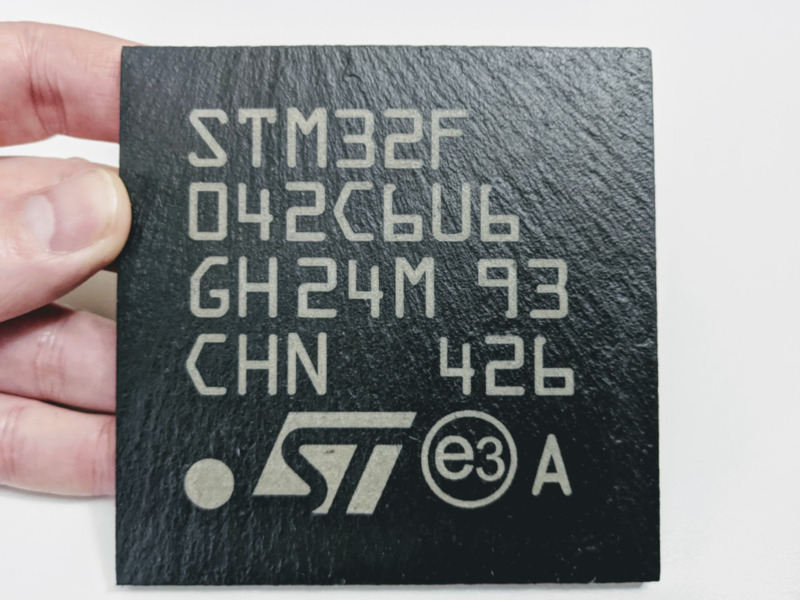

  • STM32F042C6U6

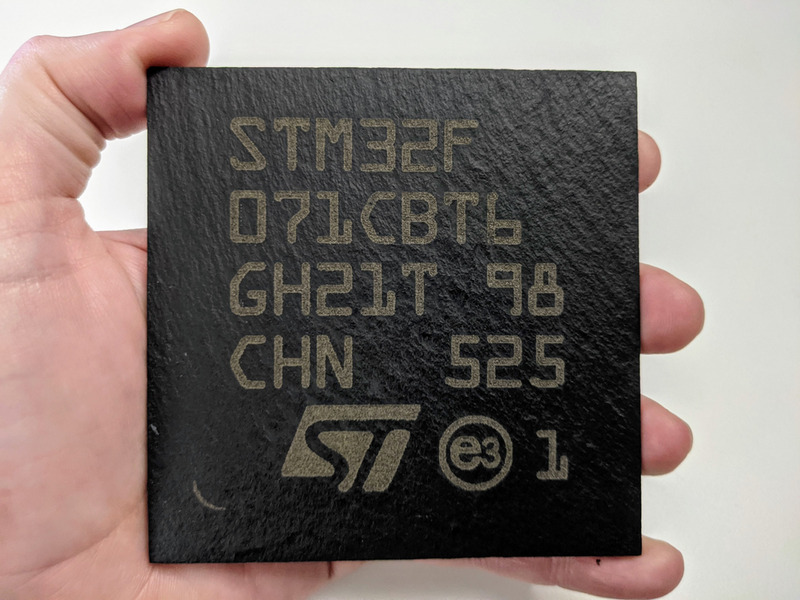

  • STM32F07

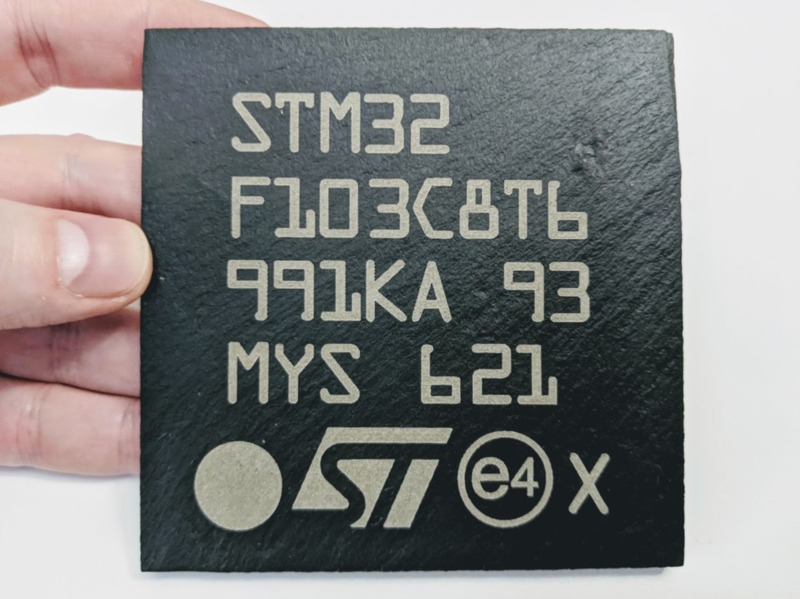

  • STM32F103-C8T6
  • STM32F405-RGT6

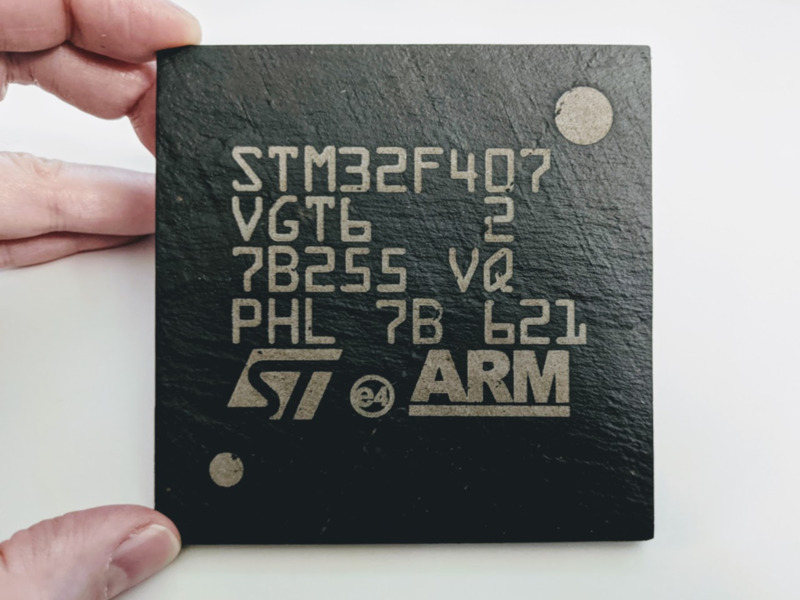

  • STM32F407-VGT6

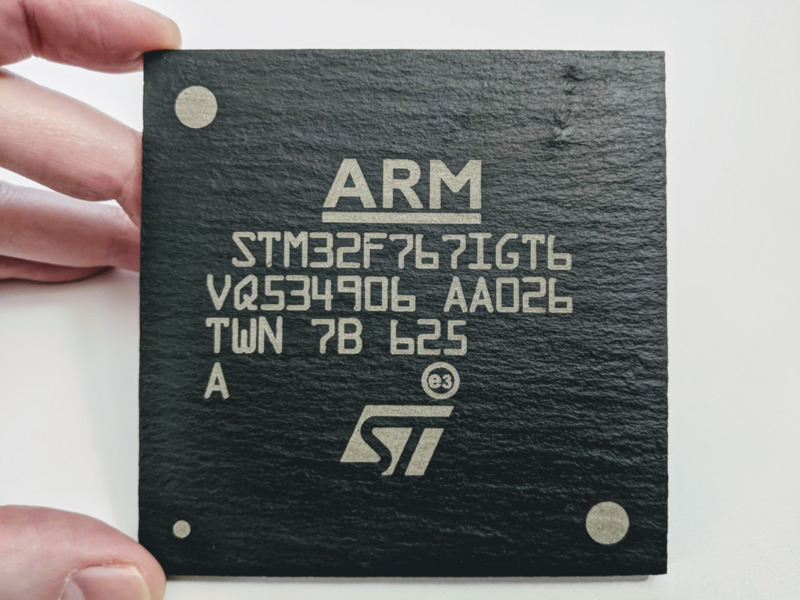

  • STM32F767-IGT6
  • Sun Ultra SPARC III

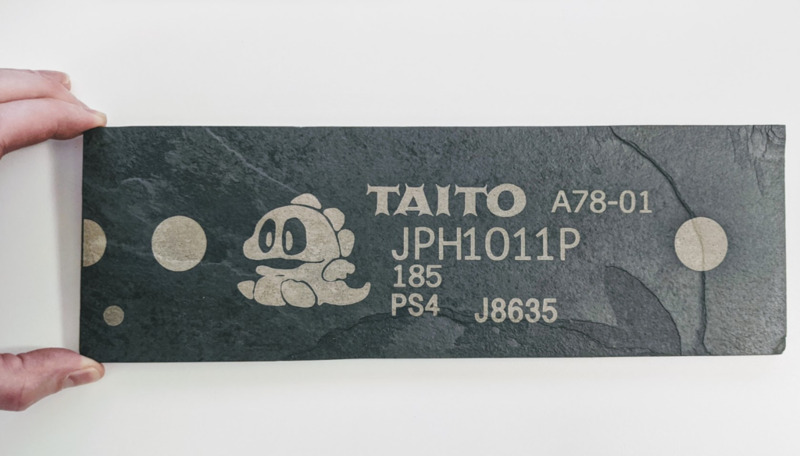

  • Taito Bubble Bobble Arcade ROM (A78-01)

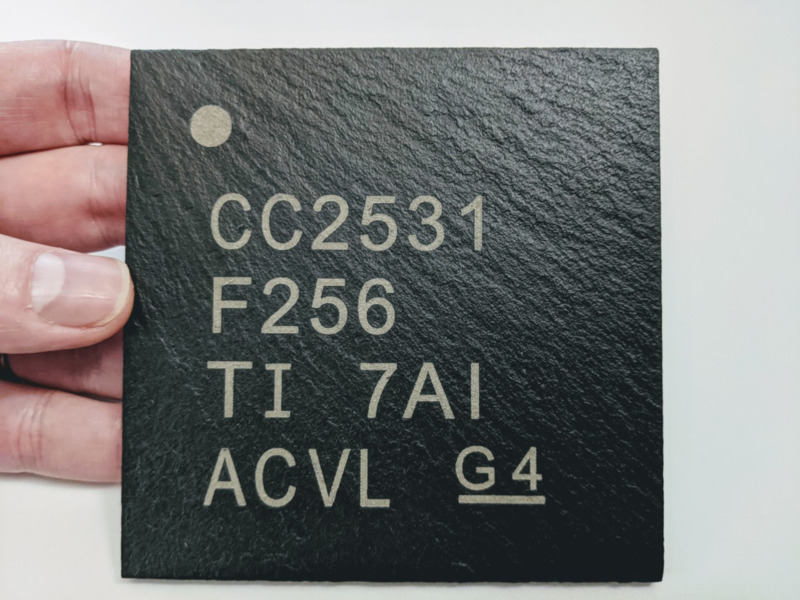

  • Texas Instruments CC2531 Zigbee

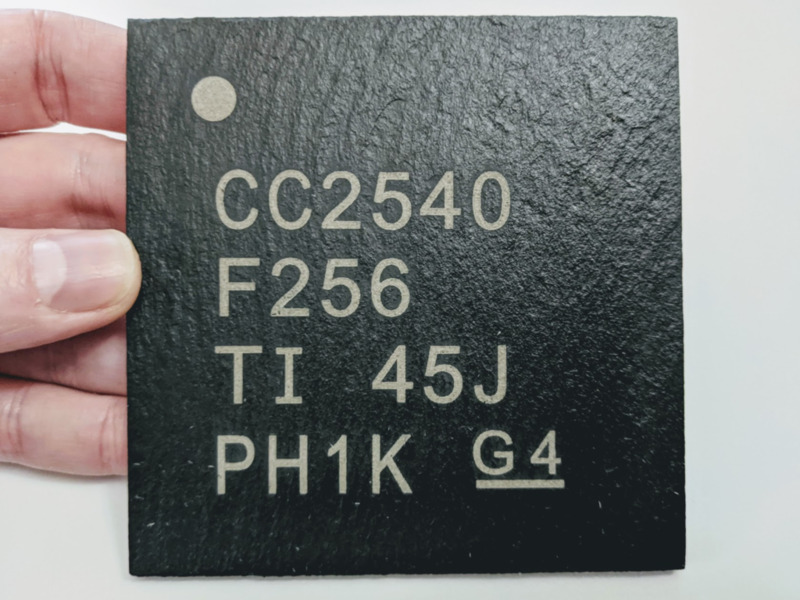

  • Texas Instruments CC2540 BLE

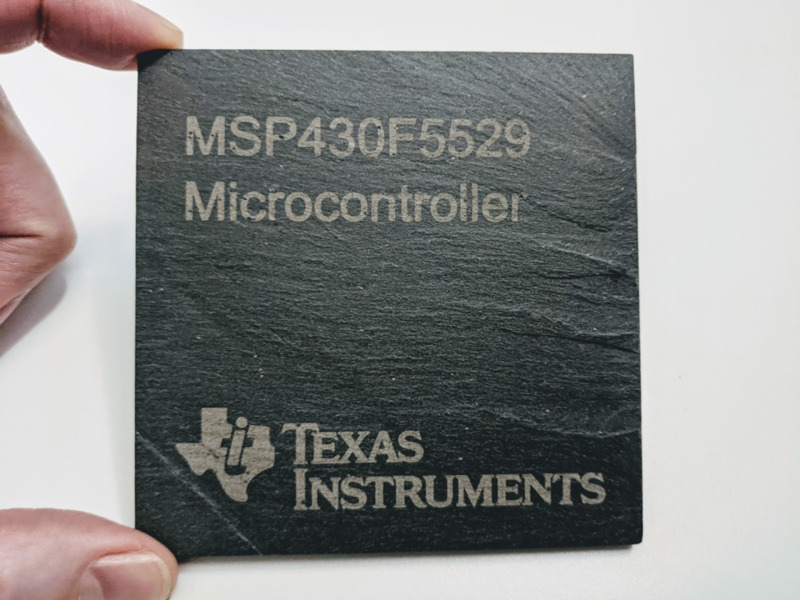

  • Texas Instruments MSP430

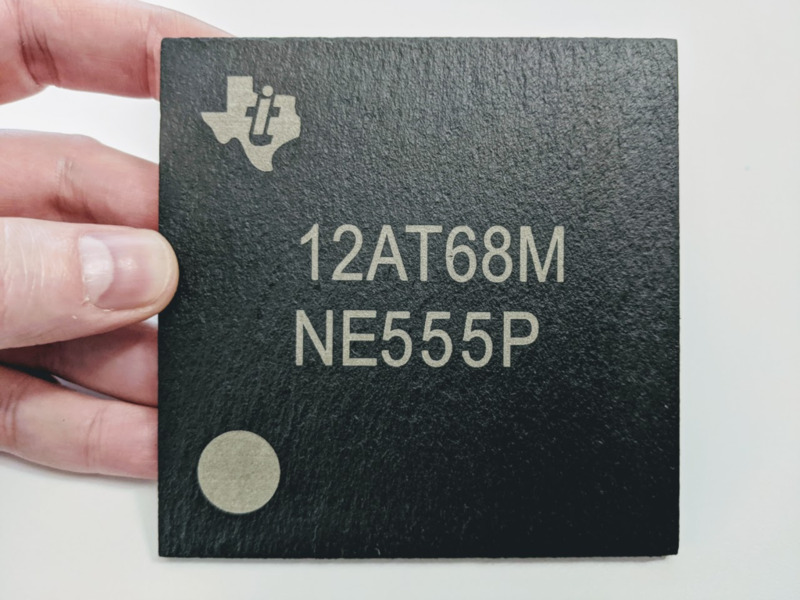

  • Texas Instruments NE555P

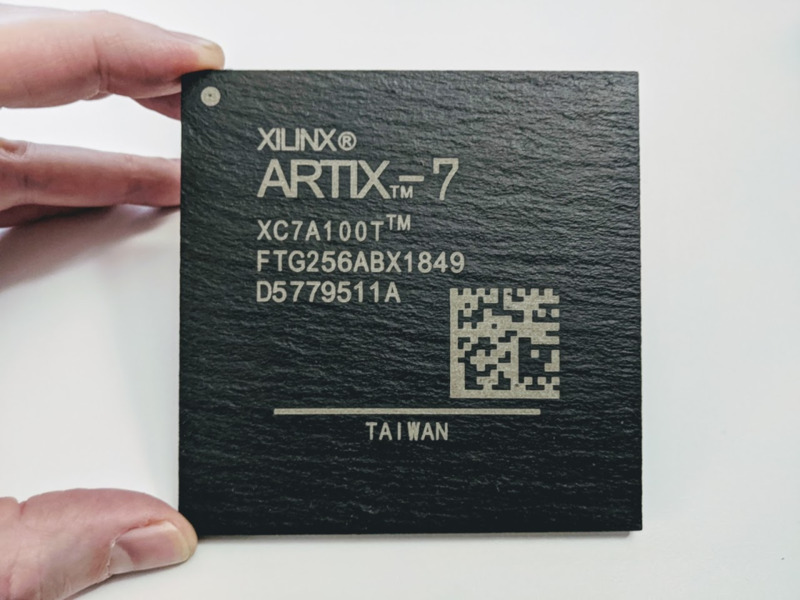

  • Xilinx Artix-7

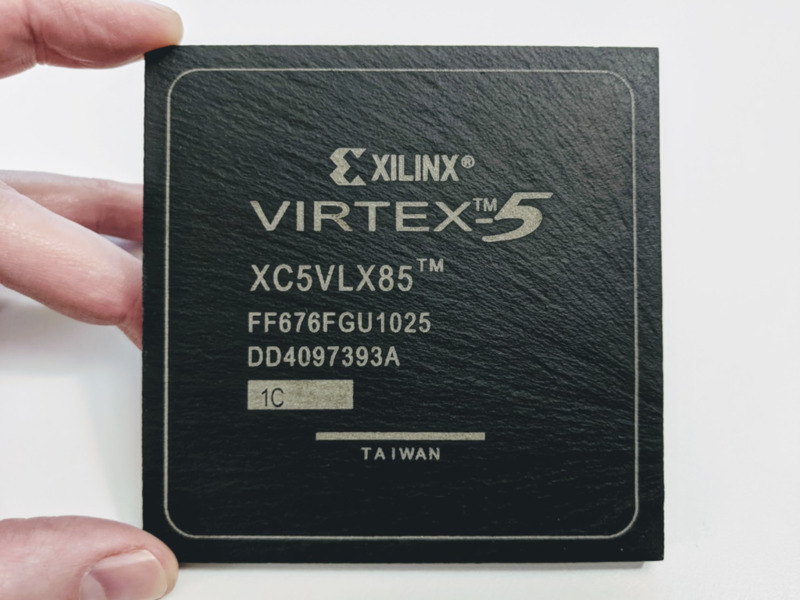

  • Xilinx Virtex-5

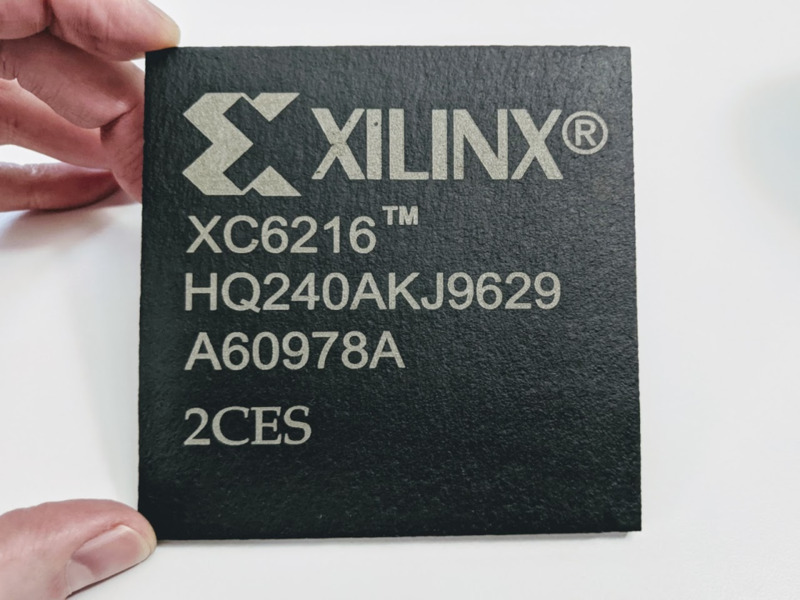

  • Xilinx XC216 (XC6200)

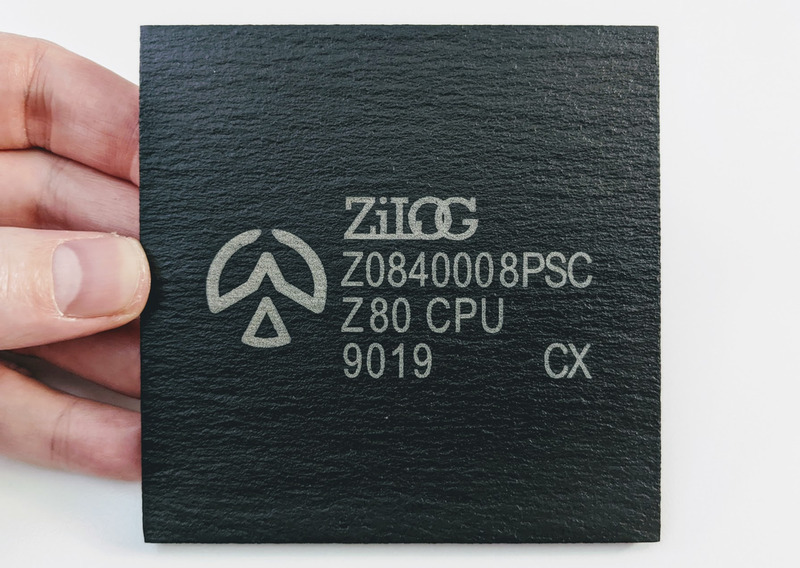

  • Zilog Z80

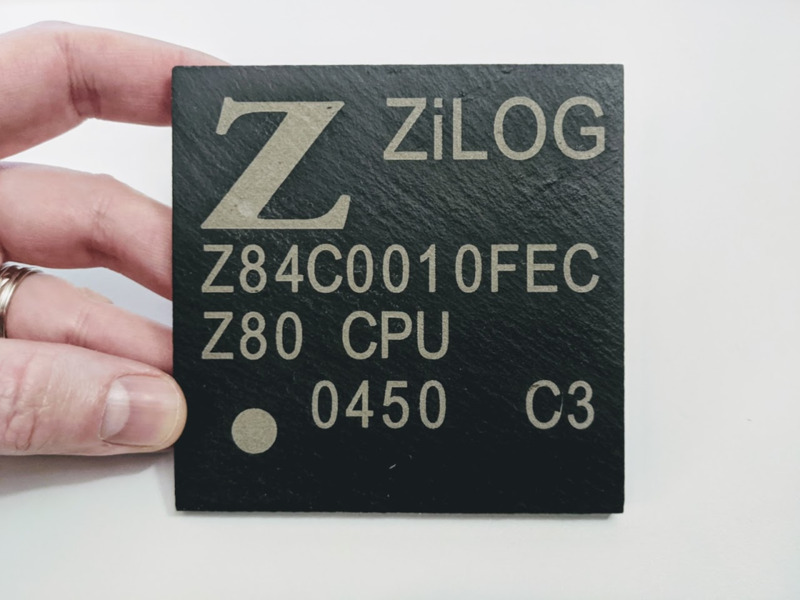

  • Zilog Z80

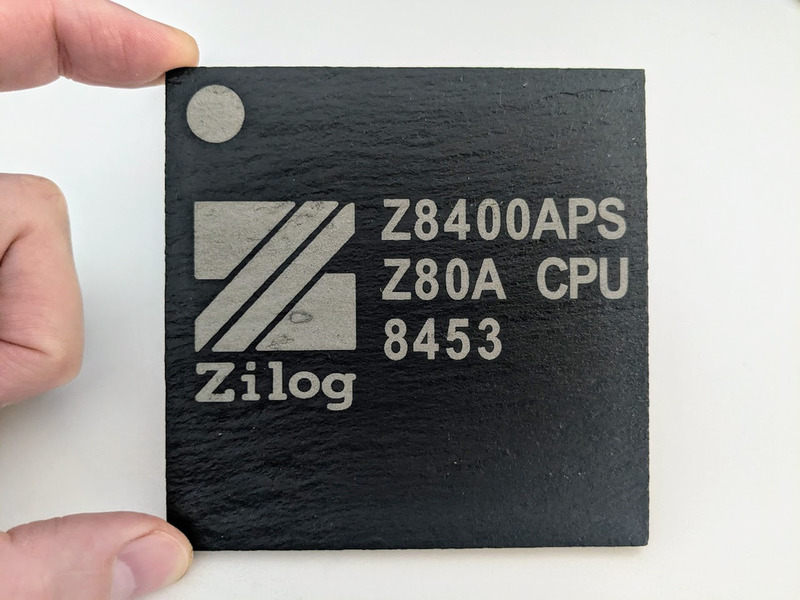

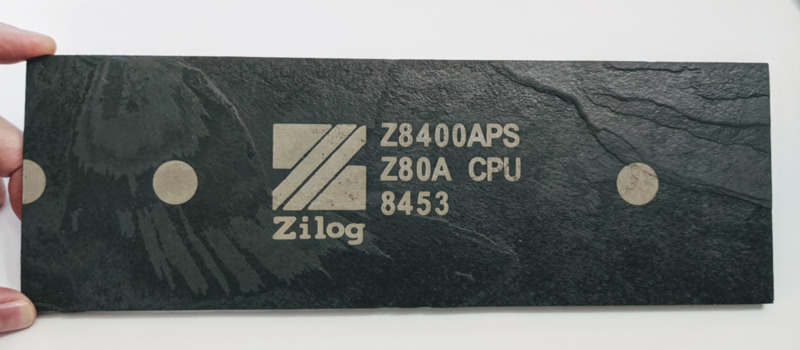

  • Zilog Z80A
